•  The primary pulley speed sensor is installed to the transaxle case having clearance with the primary pulley cylinder of the primary pulley.

am3zzn00002961

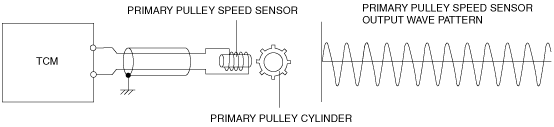

•  For every 1 rotation of the primary pulley cylinder, a 40-pulse signal waveform of the primary pulley speed sensor is output.

am3zzn00002962
