GRADE SENSOR INSPECTION [DJVA-EL]

id051901286200

Caution

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

Operation Inspection

1.  Position the vehicle on a flat surface.

2.  Switch the ignition to ON.

3.  Inspect the grade sensor using a tester.

am2zzw00004305

am3zzw00008261

•  If there is any malfunction, replace the grade sensor. (SeeGRADE SENSOR REMOVAL/INSTALLATION [DJVA-EL].)

Wiring Harness Inspection

1.  Disconnect the negative battery cable.

2.  Remove the front side garnish. (See FRONT SIDE GARNISH REMOVAL/INSTALLATION.)

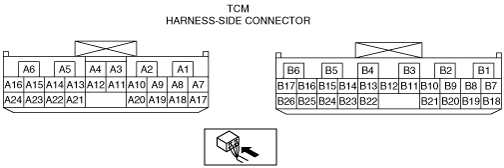

3.  Disconnect the TCM connector.

4.  Inspect the wiring harness between the grade sensor and the TCM using a tester.

•  If there is any malfunction, repair or replace the wiring harness.

am3zzw00008262
