CONTROL SYSTEM STRUCTURAL VIEW [FULL-AUTO AIR CONDITIONER]

id0740a1100200

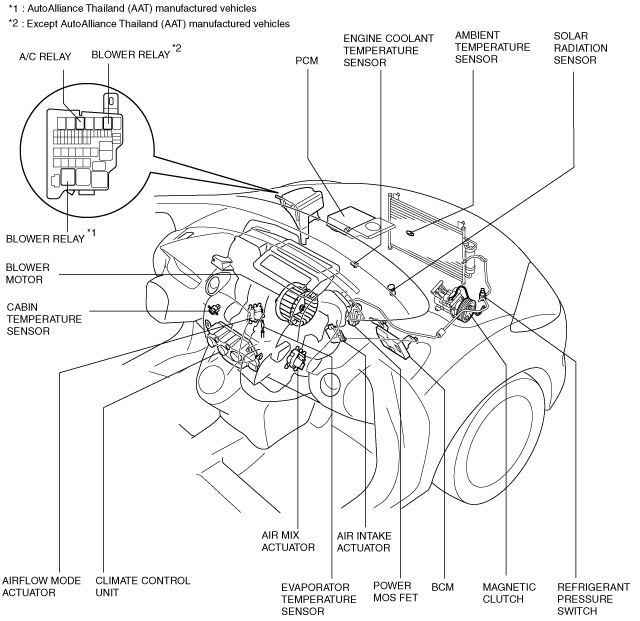

L.H.D. (ZJ, ZY)

am2zzn00001277

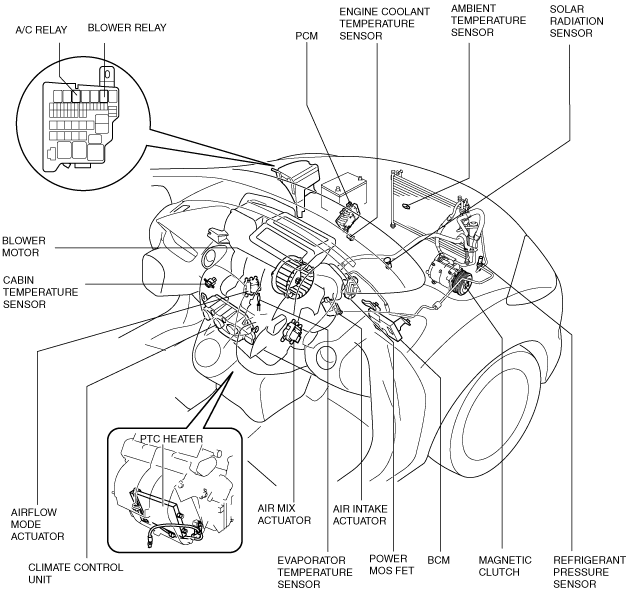

L.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000945

R.H.D. (ZJ, ZY)

am2zzn00001278

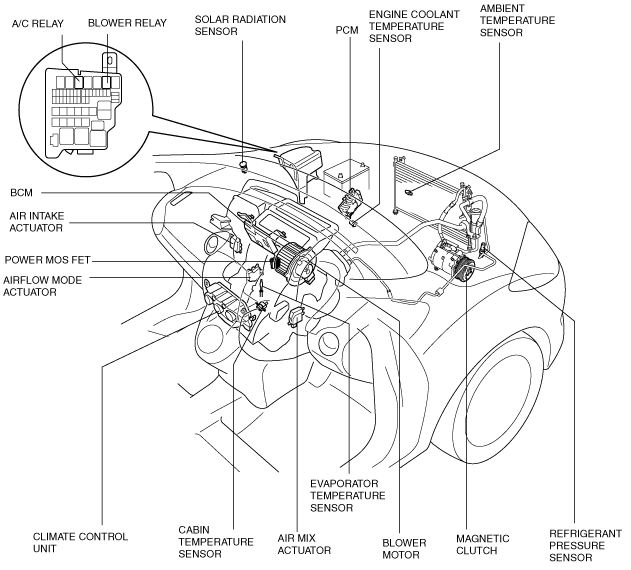

R.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000946
