CONTROL SYSTEM WIRING DIAGRAM [FULL-AUTO AIR CONDITIONER]

id0740a1100400

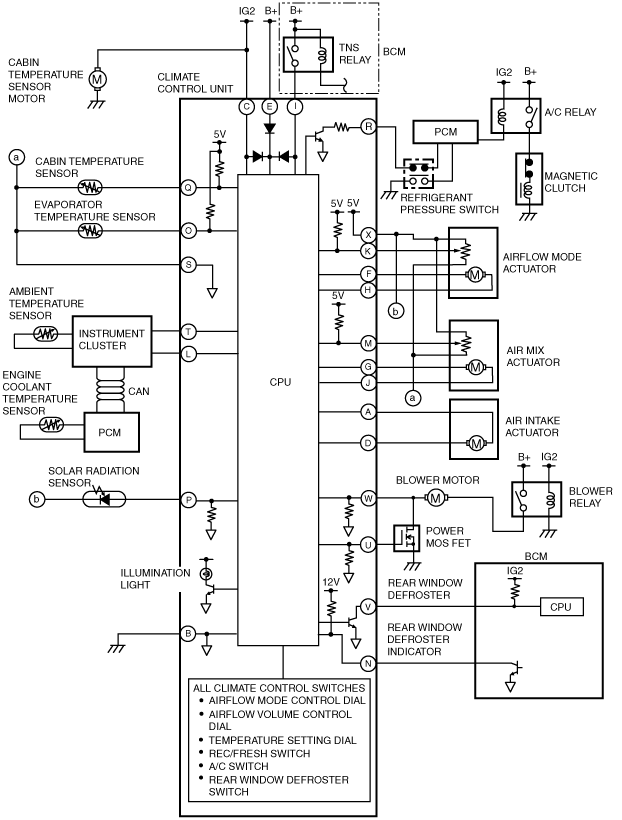

ZJ, ZY

am2zzw00003746

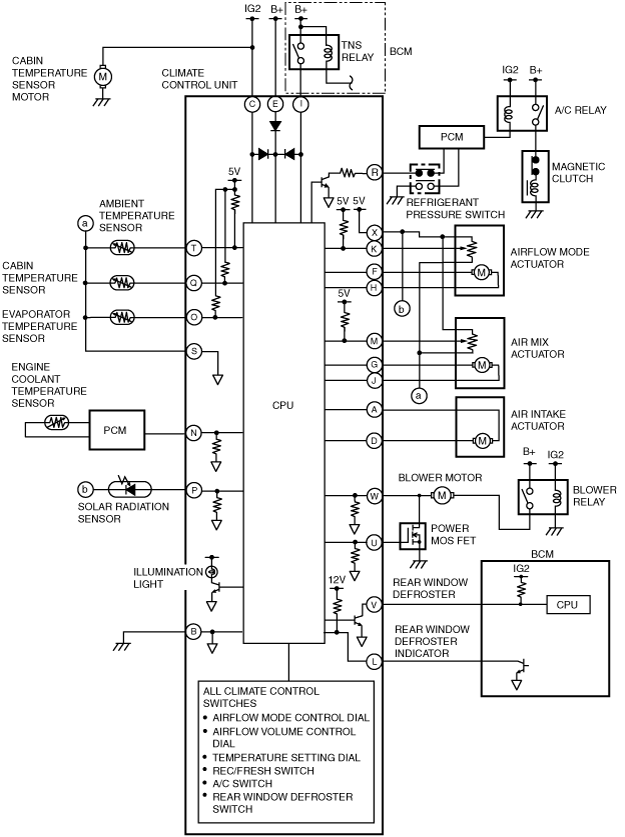

ZY (General (L.H.D.) specs) (Except AutoAlliance Thailand (AAT) manufactured vehicles)

am2zzw00003747

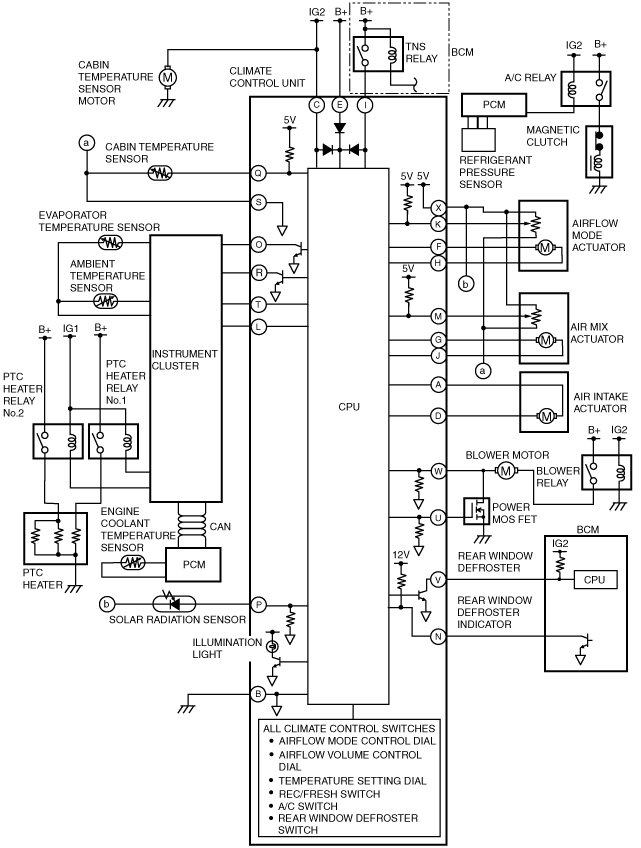

MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)

am2zzw00003748
