CONTROL SYSTEM STRUCTURAL VIEW [MANUAL AIR CONDITIONER]

id0740a2100200

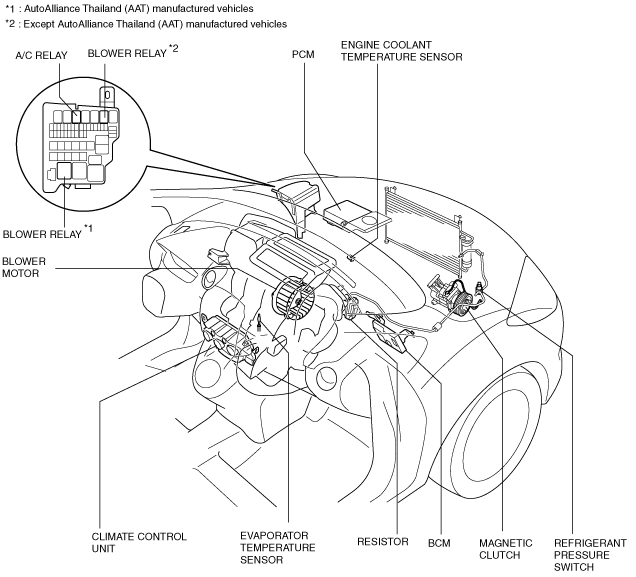

L.H.D. (ZJ, ZY)

am2zzn00001287

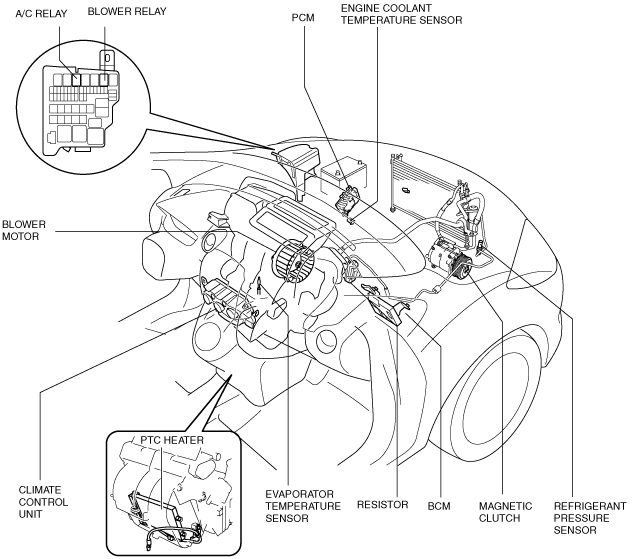

L.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000950

R.H.D. (ZJ, ZY)

am2zzn00001288

R.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000951
