REAR BUCKLE REMOVAL/INSTALLATION

id081100800700

Except AutoAlliance Thailand (AAT) manufactured vehicles

Without rear center seat belt

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the bolts.

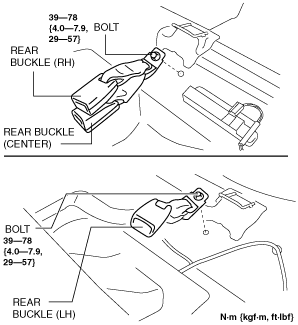

am2zzw00001936

3.  Remove the rear buckle (RH) and rear buckle (center).

4.  Remove the rear buckle (LH).

5.  Install in the reverse order of removal.

With rear center seat belt

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the bolts.

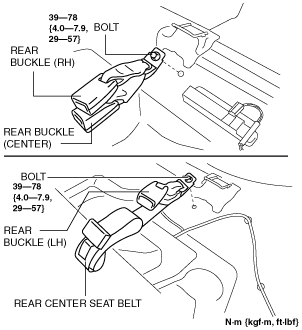

am2zzw00001937

3.  Remove the rear buckle (RH) and rear buckle (center).

4.  Remove the rear buckle (LH) and rear center seat belt.

5.  Install in the reverse order of removal.

AutoAlliance Thailand (AAT) manufactured vehicles

Without rear center seat belt

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the bolts.

am2zzw00004664

3.  Remove the rear buckle (RH) and rear buckle (center).

4.  Remove the rear buckle (LH).

5.  Install in the reverse order of removal.

With rear center seat belt

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the bolts.

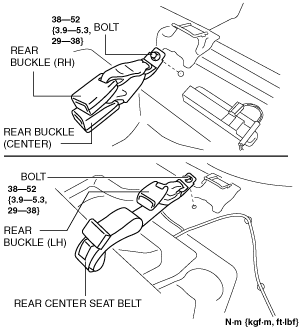

am2zzw00005123

3.  Remove the rear buckle (RH) and rear buckle (center).

4.  Remove the rear buckle (LH) and rear center seat belt.

5.  Install in the reverse order of removal.
