DTC U201F:13 [ADVANCED KEYLESS AND START SYSTEM]

id0902e1388900

Detection Condition

• Keyless receiver not connecting

Possible Causes

• Keyless receiver connector or terminals malfunction

• Keyless control module connector or terminals malfunction

• Open circuit in wiring harness between keyless receiver and keyless control module

• Keyless receiver malfunction

• Keyless control module malfunction

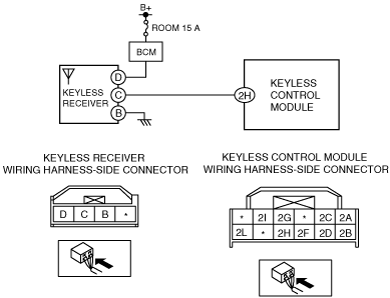

System Wiring Diagram

am2zzw00000896

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT KEYLESS RECEIVER CONNECTOR

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the keyless receiver connector.

•  Inspect the keyless receiver connector. (Corrosion, damage, and disconnected pins)

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the keyless receiver connector or terminal, then go to Step 5.

2

INSPECT KEYLESS CONTROL MODULE CONNECTOR

•  Disconnect the keyless control module connector.

•  Inspect the keyless control module connector. (Corrosion, damage, and disconnected pins)

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the keyless control module connector or terminal, then go to Step 5.

3

INSPECT KEYLESS RECEIVER SIGNAL OUTPUT CIRCUIT FOR OPEN CIRCUIT

•  Keyless receiver and keyless control module connectors are disconnected.

•  Inspect for continuity between keyless receiver terminal C (wiring harness-side) and keyless control module terminal 2H (wiring harness-side).

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to Step 5.

4

INSPECT KEYLESS RECEIVER

•  Reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Inspect the keyless receiver.
(See KEYLESS RECEIVER INSPECTION [ADVANCED KEYLESS AND START SYSTEM].)

•  Is the keyless receiver normal?

Yes

Go to the next step.

No

Replace the keyless receiver, then go to the next step.

(See KEYLESS RECEIVER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)

5

VERIFY DTCs

•  Reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].)

•  Verify the DTCs using the M-MDS.
(See DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM].)

•  Is the DTC U201F:13 displayed?

Yes

Replace the keyless control module.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	INSPECT KEYLESS RECEIVER CONNECTOR • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the keyless receiver connector. • Inspect the keyless receiver connector. (Corrosion, damage, and disconnected pins) • Are the connector and terminals normal?	Yes	Go to the next step.
1		No	Repair/replace the keyless receiver connector or terminal, then go to Step 5.
2	INSPECT KEYLESS CONTROL MODULE CONNECTOR • Disconnect the keyless control module connector. • Inspect the keyless control module connector. (Corrosion, damage, and disconnected pins) • Are the connector and terminals normal?	Yes	Go to the next step.
2		No	Repair/replace the keyless control module connector or terminal, then go to Step 5.
3	INSPECT KEYLESS RECEIVER SIGNAL OUTPUT CIRCUIT FOR OPEN CIRCUIT • Keyless receiver and keyless control module connectors are disconnected. • Inspect for continuity between keyless receiver terminal C (wiring harness-side) and keyless control module terminal 2H (wiring harness-side). • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the wiring harness for a possible open circuit, then go to Step 5.
4	INSPECT KEYLESS RECEIVER • Reconnect all disconnected connectors. • Reconnect the negative battery cable. • Inspect the keyless receiver. (See KEYLESS RECEIVER INSPECTION [ADVANCED KEYLESS AND START SYSTEM].) • Is the keyless receiver normal?	Yes	Go to the next step.
4		No	Replace the keyless receiver, then go to the next step. (See KEYLESS RECEIVER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
5	VERIFY DTCs • Reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS. (See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].) • Verify the DTCs using the M-MDS. (See DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM].) • Is the DTC U201F:13 displayed?	Yes	Replace the keyless control module. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
5		No	DTC troubleshooting completed.
