DTC B1008:11 [BCM]

id0902f5340000

Malfunction location

• Windshield wiper switch circuit malfunction

Detection condition

• Short to ground in wiring harness between windshield wiper and washer switch (windshield wiper INT) and BCM

Possible causes

• DTC inspection is performed with windshield wiper switch on.

• Wiper and washer switch connector or terminals malfunction

• Windshield wiper switch malfunction

• BCM connector or terminals malfunction

• Short to ground in wiring harness between wiper and washer switch terminal E and BCM terminal 6S (vehicles with wiper and washer switch on left side)

• Short to ground in wiring harness between wiper and washer switch terminal I and BCM terminal 6S (vehicles with wiper and washer switch on right side)

• BCM malfunction

System wiring diagram

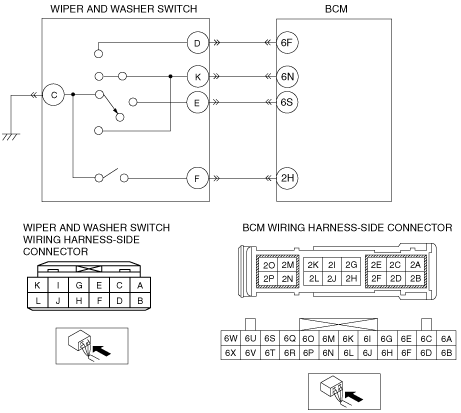

Vehicles with wiper and washer switch on left side

am2zzw00002298

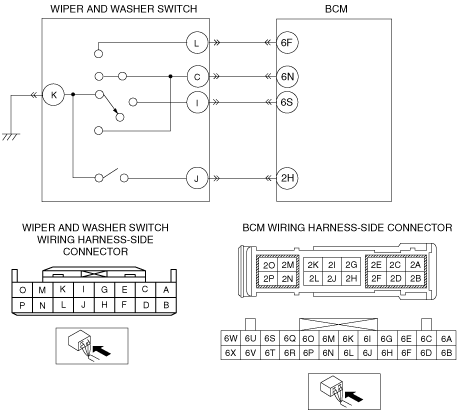

Vehicles with wiper and washer switch on right side

am2zzw00004665

Diagnostic procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the windshield wiper switch off.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the DTC B1008:11 displayed?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

VERIFY WIPER AND WASHER SWITCH CONNECTOR CONDITION

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the wiper and washer switch connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

3

VERIFY WINDSHIELD WIPER SWITCH CONDITION

•  Inspect the windshield wiper switch.
(See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.)

•  Is the windshield wiper switch normal?

Yes

Go to the next step.

No

Replace the wiper and washer switch, then go to the final step.

(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

4

VERIFY BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

5

VERIFY WIRING HARNESS BETWEEN WINDSHIELD WIPER AND WASHER SWITCH AND BCM FOR SHORT TO GROUND

•  Wiper and washer switch and BCM connectors are disconnected.

•  Inspect for continuity between the BCM terminal 6S (wiring harness-side) and body ground.

•  Is there continuity?

Yes

Repair or replace the related wiring harness, then go to the final step.

No

Go to the next step.

6

VERIFY TROUBLESHOOTING COMPLETED

•  Reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the windshield wiper switch off.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the DTC B1008:11 displayed?

Yes

Replace the BCM.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	PERFORM DTC INSPECTION • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the windshield wiper switch off. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the DTC B1008:11 displayed?	Yes	Go to the next step.
1		No	DTC troubleshooting completed.
2	VERIFY WIPER AND WASHER SWITCH CONNECTOR CONDITION • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the wiper and washer switch connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to the final step.
3	VERIFY WINDSHIELD WIPER SWITCH CONDITION • Inspect the windshield wiper switch. (See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.) • Is the windshield wiper switch normal?	Yes	Go to the next step.
3		No	Replace the wiper and washer switch, then go to the final step. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
4	VERIFY BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to the final step.
5	VERIFY WIRING HARNESS BETWEEN WINDSHIELD WIPER AND WASHER SWITCH AND BCM FOR SHORT TO GROUND • Wiper and washer switch and BCM connectors are disconnected. • Inspect for continuity between the BCM terminal 6S (wiring harness-side) and body ground. • Is there continuity?	Yes	Repair or replace the related wiring harness, then go to the final step.
5		No	Go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED • Reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the windshield wiper switch off. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the DTC B1008:11 displayed?	Yes	Replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
6		No	DTC troubleshooting completed.
