DTC B1176:13 [BCM]

id0902f5340800

Malfunction Location

• Front door latch switch (passenger's side) circuit malfunction

Detection Condition

• Open circuit in wiring harness between front door latch switch in front door latch and lock actuator (passenger's side) and BCM

Possible Causes

• DTC inspection is performed with front door latch switch (passenger's side) on.

• Front door latch and lock actuator (passenger's side) connector or terminals malfunction

• Open circuit in wiring harness between front door latch and lock actuator (passenger's side) terminal J and body ground

• Front door latch switch (passenger's side) malfunction

• BCM connector or terminals malfunction

• Open circuit in wiring harness between front door latch and lock actuator (passenger's side) terminal L and BCM terminal 7M

• BCM malfunction

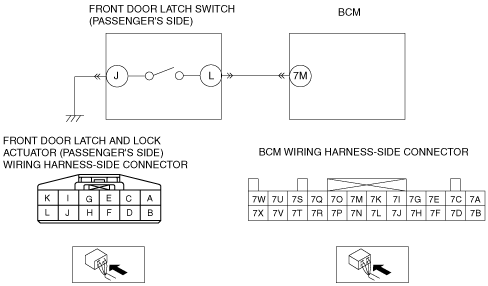

System Wiring Diagram

am2zzw00005049

Diagnostic Procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Close the front passenger's door (front door latch switch on).

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the DTC B1176:13 displayed?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER'S SIDE) CONNECTOR CONDITION

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the front door latch and lock actuator (passenger's side) connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

3

VERIFY FRONT DOOR LATCH SWITCH (PASSENGER'S SIDE) GROUND CIRCUIT CONDITION

•  Front door latch and lock actuator (passenger's side) connector is disconnected.

•  Inspect for continuity between front door latch and lock actuator (passenger's side) terminal J (wiring harness-side) and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the related wiring harness, then go to the final step.

4

VERIFY FRONT DOOR LATCH SWITCH (PASSENGER'S SIDE) CONDITION

•  Inspect the front door latch switch (passenger's side).
(See FRONT DOOR LATCH SWITCH INSPECTION FRONT DOOR LOCK ACTUATOR INSPECTION.)

•  Is the front door latch switch (passenger's side) normal?

Yes

Go to the next step.

No

Replace the front door latch and lock actuator (passenger's side), then go to the final step.

(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

5

VERIFY BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

6

VERIFY WIRING HARNESS BETWEEN FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER'S SIDE) AND BCM FOR OPEN CIRCUIT

•  Front door latch and lock actuator (passenger's side) and BCM connectors are disconnected.

•  Inspect for continuity between front door latch and lock actuator (passenger's side) terminal L (wiring harness-side) and BCM terminal 7M (wiring harness-side).

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the related wiring harness, then go to the final step.

7

VERIFY TROUBLESHOOTING COMPLETED

•  Reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS
(See CLEARING DTC [BCM].)

•  Close the front passenger's door (front door latch switch on).

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the DTC B1176:13 displayed?

Yes

Replace the BCM.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	PERFORM DTC INSPECTION • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Close the front passenger's door (front door latch switch on). • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the DTC B1176:13 displayed?	Yes	Go to the next step.
1		No	DTC troubleshooting completed.
2	VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER'S SIDE) CONNECTOR CONDITION • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the front door latch and lock actuator (passenger's side) connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to the final step.
3	VERIFY FRONT DOOR LATCH SWITCH (PASSENGER'S SIDE) GROUND CIRCUIT CONDITION • Front door latch and lock actuator (passenger's side) connector is disconnected. • Inspect for continuity between front door latch and lock actuator (passenger's side) terminal J (wiring harness-side) and body ground. • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the related wiring harness, then go to the final step.
4	VERIFY FRONT DOOR LATCH SWITCH (PASSENGER'S SIDE) CONDITION • Inspect the front door latch switch (passenger's side). (See FRONT DOOR LATCH SWITCH INSPECTION FRONT DOOR LOCK ACTUATOR INSPECTION.) • Is the front door latch switch (passenger's side) normal?	Yes	Go to the next step.
4		No	Replace the front door latch and lock actuator (passenger's side), then go to the final step. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
5	VERIFY BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
5		No	Repair or replace the connector, then go to the final step.
6	VERIFY WIRING HARNESS BETWEEN FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER'S SIDE) AND BCM FOR OPEN CIRCUIT • Front door latch and lock actuator (passenger's side) and BCM connectors are disconnected. • Inspect for continuity between front door latch and lock actuator (passenger's side) terminal L (wiring harness-side) and BCM terminal 7M (wiring harness-side). • Is there continuity?	Yes	Go to the next step.
6		No	Repair or replace the related wiring harness, then go to the final step.
7	VERIFY TROUBLESHOOTING COMPLETED • Reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS (See CLEARING DTC [BCM].) • Close the front passenger's door (front door latch switch on). • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the DTC B1176:13 displayed?	Yes	Replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
7		No	DTC troubleshooting completed.
