DTC B1D36:92 [BCM]

id0902f5389800

Malfunction Location

• Turn switch circuit malfunction

Detection Condition

• Short to ground in wiring harness between turn switch and BCM

Possible Causes

• Light switch connector or terminals malfunction

• Turn switch malfunction

• BCM connector or terminals malfunction

• Short to ground in wiring harness between light switch terminal G and BCM terminal 6A

• Short to ground in wiring harness between light switch terminal E and BCM terminal 6B (vehicles with light switch on left side)

• Short to ground in wiring harness between light switch terminal I and BCM terminal 6B (vehicles with light switch on right side)

• BCM malfunction

System Wiring Diagram

Vehicles with light switch on left side

am2zzw00004666

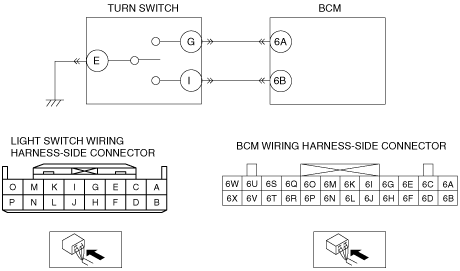

Vehicles with light switch on right side

am2zzw00005058

Diagnostic Procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the turn switch off.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the DTC B1D36:92 displayed?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

VERIFY LIGHT SWITCH CONNECTOR CONDITION

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the light switch connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

3

VERIFY TURN SWITCH CONDITION

•  Inspect the turn switch.
(See LIGHT SWITCH INSPECTION.)

•  Is the turn switch normal?

Yes

Go to the next step.

No

Replace the light switch, then go to the final step.

(See LIGHT SWITCH REMOVAL/INSTALLATION.)

4

VERIFY BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

5

VERIFY WIRING HARNESS BETWEEN LIGHT SWITCH AND BCM FOR SHORT TO GROUND

•  Light switch and BCM connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side) and body ground:

―  BCM terminal 6A

―  BCM terminal 6B

•  Is there continuity?

Yes

Repair or replace the related wiring harness, then go to the final step.

No

Go to the next step.

6

VERIFY TROUBLESHOOTING COMPLETED

•  Reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the turn switch off.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the DTC B1D36:92 displayed?

Yes

Replace the BCM.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	PERFORM DTC INSPECTION • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the turn switch off. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the DTC B1D36:92 displayed?	Yes	Go to the next step.
1		No	DTC troubleshooting completed.
2	VERIFY LIGHT SWITCH CONNECTOR CONDITION • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the light switch connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to the final step.
3	VERIFY TURN SWITCH CONDITION • Inspect the turn switch. (See LIGHT SWITCH INSPECTION.) • Is the turn switch normal?	Yes	Go to the next step.
3		No	Replace the light switch, then go to the final step. (See LIGHT SWITCH REMOVAL/INSTALLATION.)
4	VERIFY BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to the final step.
5	VERIFY WIRING HARNESS BETWEEN LIGHT SWITCH AND BCM FOR SHORT TO GROUND • Light switch and BCM connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ― BCM terminal 6A ― BCM terminal 6B • Is there continuity?	Yes	Repair or replace the related wiring harness, then go to the final step.
5		No	Go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED • Reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the turn switch off. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the DTC B1D36:92 displayed?	Yes	Replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
6		No	DTC troubleshooting completed.
