STARTING PROCEDURE FOR ON-BOARD DIAGNOSTIC TEST MODE [AUDIO]

id0902f6358300

Note

•  All DTCs displayed in the on-board diagnostic test mode should be entered in the Audio Repair Order Form.

Without CD/USB/AUX switch

1.  Turn the ignition switch to the ACC or ON position.

2.  Turn the center panel unit power to off.

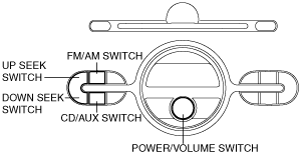

3.  While pressing the POWER/VOLUME switch, simultaneously press the FM/AM switch and the CD/AUX switch for 2 s or more.

am2zzw00004951

Note

•  If several DTCs are in the memory, they can be displayed using the UP SEEK switch or DOWN SEEK switch.

4.  To stop the on-board diagnostic test mode, turn the ignition switch to the LOCK position.

With CD/USB/AUX switch

1.  Turn the ignition switch to the ACC or ON position.

2.  Turn the center panel unit power to off.

3.  While pressing the POWER/VOLUME switch, simultaneously press the SCAN switch and the Preset switch 2 switch for 3 s or more.

am2zzw00006944

Note

•  If several DTCs are in the memory, they can be displayed using the UP SEEK switch or DOWN SEEK switch.

4.  To stop the on-board diagnostic test mode, turn the ignition switch to the LOCK position.
