DETERMINING MALFUNCTIONING PART (HS-CAN) [MULTIPLEX COMMUNICATION SYSTEM (R.H.D.)]


id0902j4846700

Caution
•  If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.
•  When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1.  Verify the CAN system-related module DTCs and the failed module using the (M-MDS).

2.  Look for a DTC display pattern and failed module display pattern in tandem which match.

Note
•  A hyphen “- “ in the DTC output pattern table indicates that the DTC may be displayed depending on the malfunction detection conditions. If only an “ד is indicated, it means the DTC will not be displayed.
•  If any of the following DTCs is displayed alone, perform the applicable DTC inspection. (See DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM (R.H.D.)].)
―  DSC HU/CM: U0401:68
―  BCM: U0415:68
―  Keyless control module: U0401:68
―  EPS control module: U0401:00
―  Instrument cluster: U0100:87, U0401:68, U0401:92, U0402:92, U0415:92, U0420:92, U0452:68, U0452:92, U0515:68

3.  Refer to the matching tandem diagnostic results (A to L) and inspect the possible cause and inspection item.

4.  Perform the DTC inspection after the repair procedure.

•  If any DTC is displayed, return to FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D.)].


Diagnostic Table for Determining Malfunctioning Part

Cross (×): Displayed
Hyphen (-): May or may not be displayed

M-MDS display

DTC display pattern

DTC output module

DTC

PCM (PCM)*1
U0101:00



×








U0121:00

×










U0140:00





×






U0151:00







×




U0155:00











×
PCM (PCM)*2
U0121:00

×










U0140:00





×






U0155











×
U0416









×


U0423











-
PCM (PCM)*3
U0121:00

×










U0122:86

×










U0122:87

×










U0155:00

×










U0167:00











×
U0300:87




×*7






×*8
ABS (ABS HU/CM)*4
U0100:00
×











U0155:00











×
U2101:00











-
ABS (DSC HU/CM)*5
U0100:00
×











U0126:00









×


U0155:00











×
U0401:68
-











U2101:00











-
BCM/GEM (BCM)
U0100:00
×

×









U0101:00



×








U0121:00

×
×









U0415:68

-
-









TCM (TCM)*6
U0100:00
×

×









U0121:00

×
×









RKE (Keyless control module)*7
U0028:87





×






U0100:00
×

×









U0401:68
-

-









RCM (SAS control module)
U0155:00











×
EPS (EPS control module)
U0100:00
×

×



×

×



U0401:00
-

-



-

-



VSM*9 (Theft-deterrent control module)
U0100:00
×

×



×

×



U0140:00





×
×

×



IC (Instrument cluster)
U0100:00
×

×



×

×



U0100:87
-

-



-

-



U0101:00



×


×

×



U0121:00

×
×



×

×



U0131:00









×


U0140:00





×
×

×



U0151:00







×
×



U0214:00




×

×

×



U0401:68
-

-









U0401:92
-

-



-

-



U0402:92



-


-

-



U0415:92

-
-



-

-



U0420:92









-


U0452:68







-
-



U0452:92







-
-



U0515:68




-

-

-



M-MDS display module
“Fail” display pattern
PCM
×

×



×

×



ABS

×
×



×

×



BCM/GEM





×
×

×



TCM*6



×


×

×



RKE*7




×

×

×



RCM







×
×



EPS









×


VSM*9










×

IC











×
Item
Diagnostic result
Possible cause and inspection item
A
B
C
D
E
F
G
H
I
J
K
L
Reference page
A
B
C
D
E
F
G
H
I
J
K
L

*1  :ZJ, ZY
*2  :MZ-CD 1.4 DI Turbo
*3  :MZ-CD 1.6 (Y6)
*4  :With ABS
*5  :With DSC
*6  :CVT
*7  :With advanced keyless entry and start system
*8  :With keyless entry system
*9  :Theft-deterrent system

A


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between PCM and branch A
•  PCM malfunction


System wiring diagram

am2zzw00004670


Inspection item

ZJ, ZY
•  PCM connector
•  Wiring harness between PCM terminal 1AE and branch A
•  Wiring harness between PCM terminal 1AI and branch A
•  PCM
MZ-CD 1.4 DI Turbo
•  PCM connector
•  Wiring harness between PCM terminal 1A and branch A
•  Wiring harness between PCM terminal 1B and branch A
•  PCM
MZ-CD 1.6 (Y6)
•  PCM connector
•  Wiring harness between PCM terminal 301 and branch A
•  Wiring harness between PCM terminal 309 and branch A
•  PCM


B


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between ABS HU/CM and branch A
•  Open circuit in wiring harness between DSC HU/CM and branch A
•  ABS HU/CM malfunction
•  DSC HU/CM malfunction

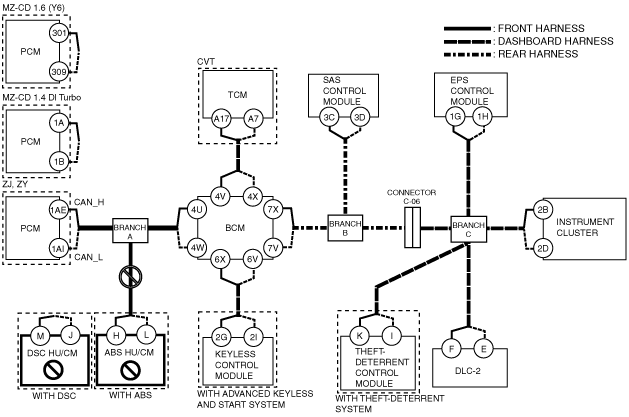

System wiring diagram

am2zzw00004671


Inspection item

•  ABS HU/CM connector
•  DSC HU/CM connector
•  Wiring harness between ABS HU/CM terminal H and branch A
•  Wiring harness between ABS HU/CM terminal L and branch A
•  Wiring harness between DSC HU/CM terminal M and branch A
•  Wiring harness between DSC HU/CM terminal J and branch A
•  ABS HU/CM
•  DSC HU/CM


C


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between BCM and branch A

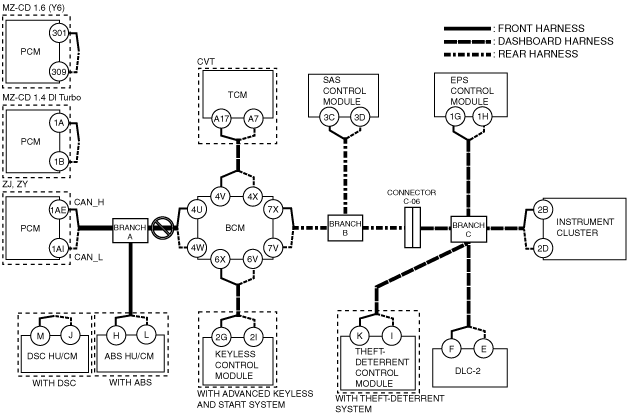

System wiring diagram

am2zzw00004672


Inspection item

•  BCM connector
•  Wiring harness between BCM terminal 4U and branch A
•  Wiring harness between BCM terminal 4W and branch A


D


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness BCM and TCM
•  TCM malfunction
•  BCM malfunction

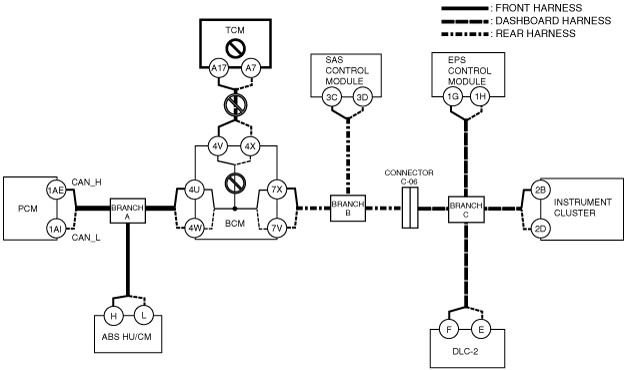

System wiring diagram

am2zzw00004673


Inspection item

•  TCM connector
•  BCM connector
•  Wiring harness between TCM terminal A17 and BCM terminal 4V
•  Wiring harness between TCM terminal A7 and BCM terminal 4X
•  TCM
•  BCM


E


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness keyless control module and BCM
•  Keyless control module malfunction.
•  BCM malfunction

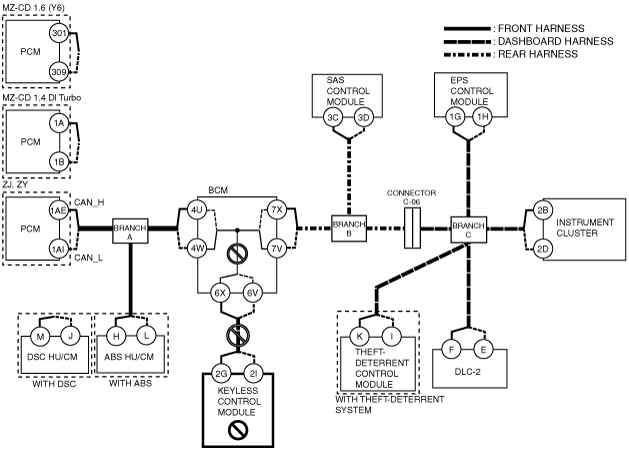

System wiring diagram

am2zzw00004674


Inspection item

•  Keyless control module connector
•  BCM connector
•  Wiring harness between keyless control module terminal 2G and BCM terminal 6X
•  Wiring harness between keyless control module terminal 2I and BCM terminal 6V
•  Keyless control module
•  BCM


F


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  BCM malfunction

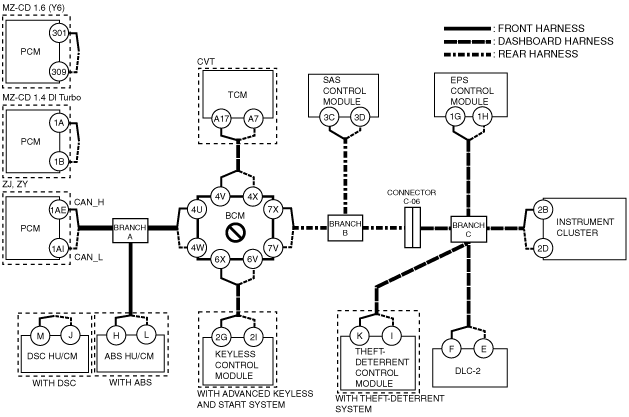

System wiring diagram

am2zzw00004675


Inspection item

•  BCM


G


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness BCM and branch B

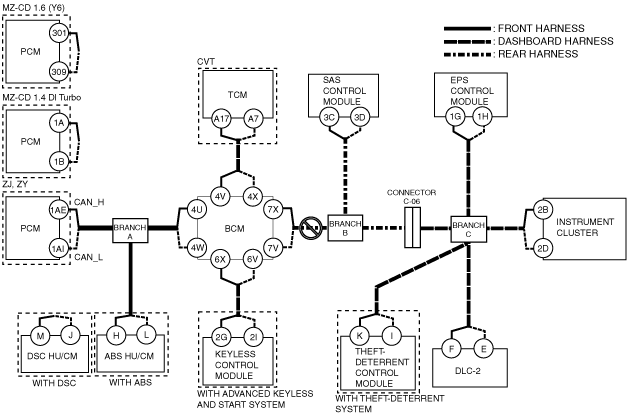

System wiring diagram

am2zzw00004676


Inspection item

•  BCM connector
•  Wiring harness between BCM terminal 7X and branch B
•  Wiring harness between BCM terminal 7V and branch B


H


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness SAS control module and branch B
•  SAS control module malfunction

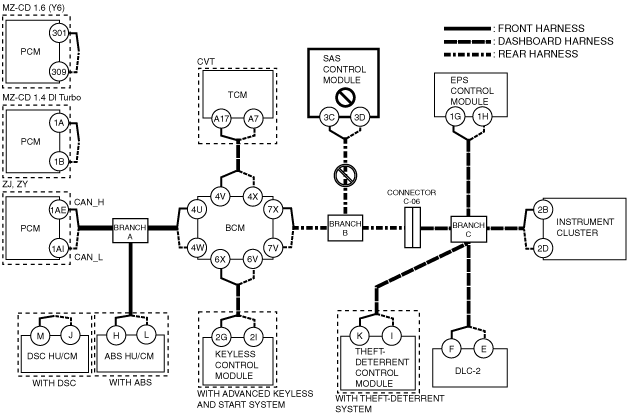

System wiring diagram

am2zzw00004677


Inspection item

•  SAS control module connector
•  Wiring harness between SAS control module terminal 3C and branch B
•  Wiring harness between SAS control module terminal 3D and branch B
•  SAS control module


I


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness branch B and connector C-06
•  Open circuit in wiring harness connector C-06 and branch C
•  Connector C-06 malfunction

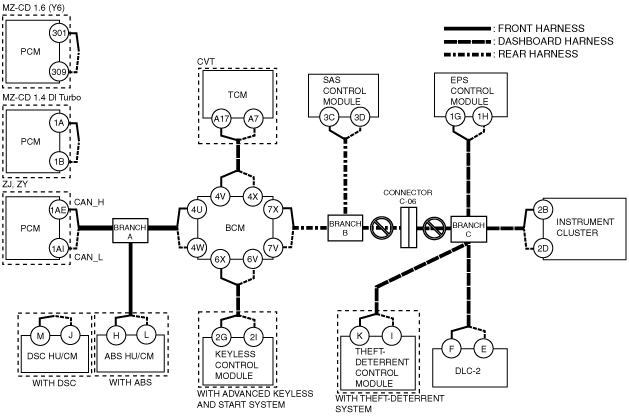

System wiring diagram

am2zzw00004678


Inspection item

•  Connector C-06
•  Wiring harness between branch B and connector C-06
•  Wiring harness between connector C-06 and branch C


J


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between EPS control module and branch C
•  EPS control module malfunction

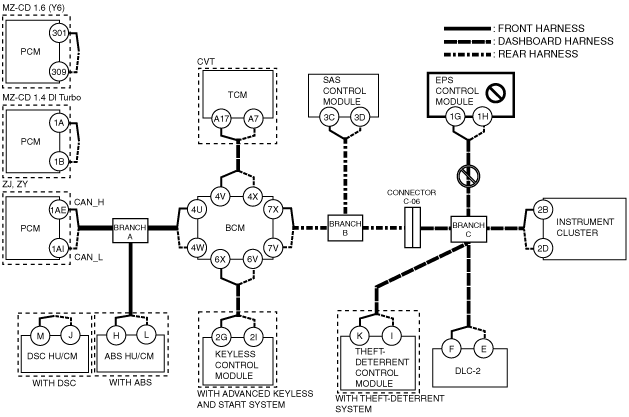

System wiring diagram

am2zzw00004679


Inspection item

•  EPS control module connector
•  Wiring harness between EPS control module terminal 1G and branch C
•  Wiring harness between EPS control module terminal 1H and branch C
•  EPS control module


K


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness between Theft-deterrent control module and branch C
•  Theft-deterrent control module malfunction

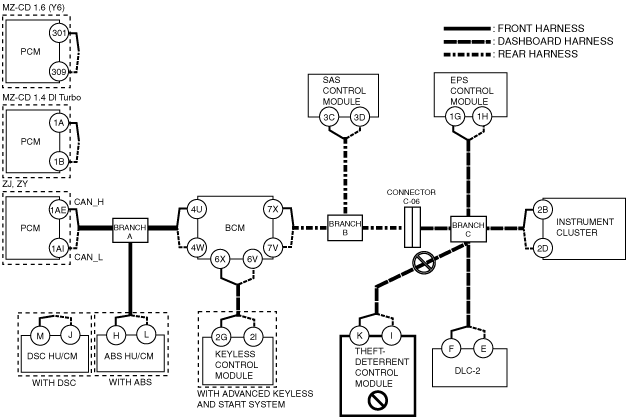

System wiring diagram

am2zzw00004680


Inspection item

•  Theft-deterrent control module connector
•  Wiring harness between theft-deterrent control module terminal K and branch C
•  Wiring harness between theft-deterrent control module terminal I and branch C
•  Theft-deterrent control module


L


Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion
•  Open circuit in wiring harness instrument cluster and branch C
•  Instrument cluster malfunction

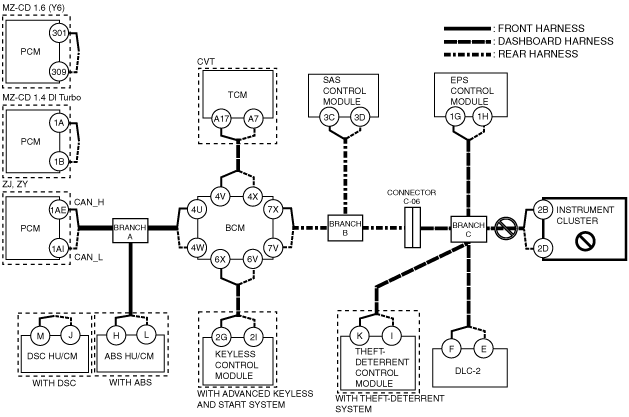

System wiring diagram

am2zzw00004681


Inspection item

•  Instrument cluster connector
•  Wiring harness between instrument cluster terminal 2B and branch C
•  Wiring harness between instrument cluster terminal 2D and branch C
•  Instrument cluster
