BONNET ADJUSTMENT

id091000407300

Gap Adjustment

1. Measure the gap between the bonnet and body.

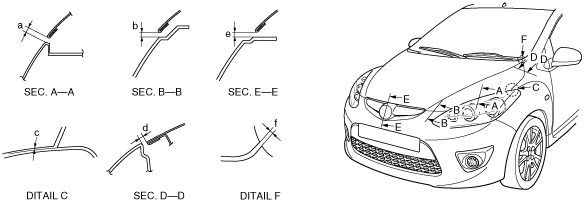

am2zzw00003787

Standard clearance

a:2.9―6.1 mm {0.12―0.24 in}

b:3.0―6.0 mm {0.12―0.23 in}

c:-1.0―1.0 mm {-0.039―0.039 in}

d:2.5―4.5 mm {0.10―0.17 in}

e:3.0―6.0 mm {0.12―0.23 in}

f:-1.0―1.0 mm {-0.039―0.039 in}

2. Remove the front fender molding. (See FRONT FENDER PANEL REMOVAL/INSTALLATION)

3. Loosen the bonnet hinge installation bolts and adjust the gap by moving the bonnet hinge back and forth, left and right.

am2zzw00005034

4. Tighten the bolts. (See BONNET REMOVAL/INSTALLATION)

5. Install the front fender molding. (See FRONT FENDER PANEL REMOVAL/INSTALLATION)

Height Difference Adjustment

1. Measure the height difference between the bonnet and body.

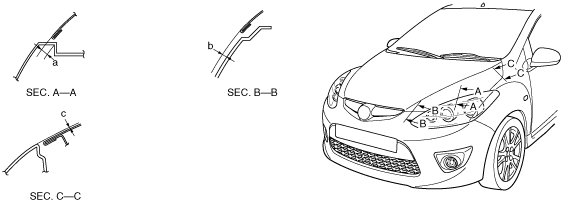

am2zzw00001599

Standard clearance

a:1.9―4.5mm {0.08―0.17 in}

b:0.8―3.7mm {0.04―0.14 in}

c:-1.0―0.5mm {-0.03―0.01 in}

2. Turn the stop rubber to adjust.
