REAR DOOR CHECKER REMOVAL/INSTALLATION

id091100520700

1.  Fully close the rear door glass.

2.  Disconnect the negative battery cable.

3.  Remove the sail inner garnish. (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)

4.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

5.  Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

6.  Remove the bolt.

am2zzw00004816

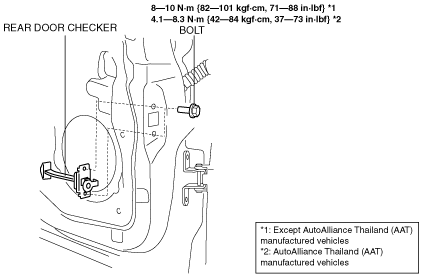

7.  Remove the bolts.

am2zzw00004817

8.  Pull out the rear door checker from the rear speaker installation hole.

9.  Install in the reverse order of removal.
