REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION

id091200001200

1.  To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 210 mm {8.27 in}.

am2zzw00004402

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Sail inner garnish (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

(3)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(4)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(5)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

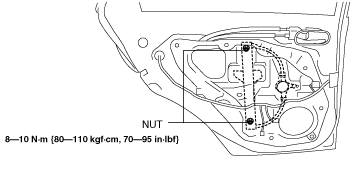

4.  Remove the nuts.

am2zzw00004818

5.  Insert your hand through the rear door speaker installation hole, rotate the drum housing in the direction shown in the figure and disengage the tabs from the rear door module panel.

am2zzw00002324

6.  Remove the rear power window regulator from the rear speaker installation hole.

am2zzw00000477

7.  Install in the reverse order of removal.

Caution

•  When installing, do not allow the cable to come out from the drum housing.
