POWER WINDOW MOTOR INSPECTION

id091200001700

Driver’s Side

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the power window motor connector.

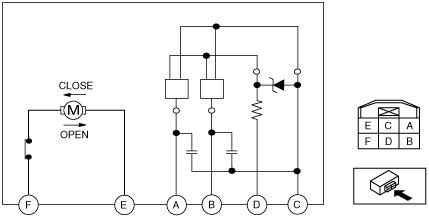

5.  Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

am2zzw00004469

•  If the power window motor does not operate as indicated in the table, replace it.

Operation	Terminal
	E	F
Open	Ground	B+
Close	B+	Ground

6.  Connect the battery positive voltage to power window motor terminal D and connect terminal C to ground.

7.  Operate the power window motor and measure the voltage at terminals A and B.

•  If there is any malfunction, replace the power window motor.

Passenger’s Side

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the power window motor connector.

5.  Apply battery positive voltage and connect the ground to the power window motor terminals, and then inspect the power window motor operation.

am2zzw00004470

•  If the power window motor does not operate as indicated in the table, replace it.

Operation	Terminal
	E	F
Open	Ground	B+
Close	B+	Ground

Rear Side

1.  Disconnect the negative battery cable.

2.  Remove the sail inner garnish. (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the Rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the power window motor connector.

5.  Apply battery positive voltage and connect the ground to the power window motor terminals, and then inspect the power window motor operation.

am2zzw00004471

•  If the power window motor does not operate as indicated in the table, replace it.

Operation	Terminal
	E	F
Open	Ground	B+
Close	B+	Ground
