POWER OUTER MIRROR REMOVAL/INSTALLATION

id091200002400

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Disconnect the power outer mirror connector.

am2zzw00004981

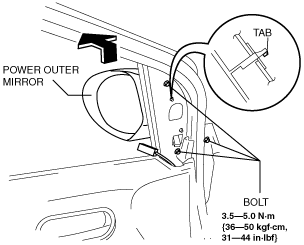

4.  Remove the bolts.

am2zzw00004982

5.  Remove the power outer mirror by pulling it in the direction of the arrow shown in the figure to release the tab.

6.  Install in the reverse order of removal.
