QUARTER WINDOW GLASS REMOVAL [3HB]

id0912000025z3

Warning

•  Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

•  Using the piano wire with bare hands can cause injury. Always wear gloves when using the piano wire.

1.  Remove the following parts:

(1)  Partially peel back the seaming welt.

(2)  Rear seat cushion (See REAR SEAT BACK REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)

(3)  Rear seat back (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(4)  Lower anchor installation bolts on the rear seat belt. (See REAR SEAT BELT REMOVAL/INSTALLATION [3HB].)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [3HB].)

(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION [3HB].)

(8)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION [3HB].)

2.  Apply protective tape along the edge of the body and the quarter window glass.

am2zzw00003387

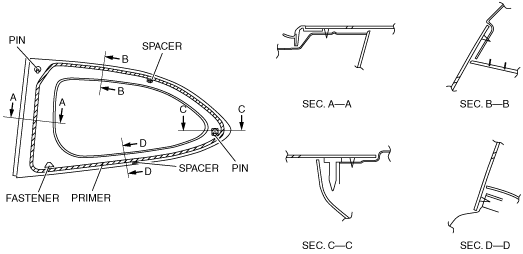

3.  Cut out the sealant all around the glass from inside the vehicle using a sealant remover and the piano wire.

am2zzw00003388

4.  Pull the quarter window glass outward and detach the pins from the body.

Note

•  The pin is a replacement part.
