POWER OUTER MIRROR SWITCH INSPECTION

id091200003400

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the switch panel. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)

5.  Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch.

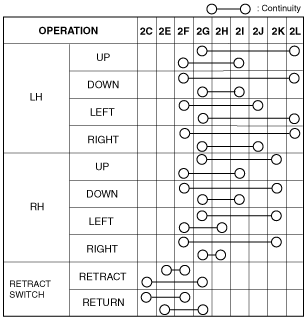

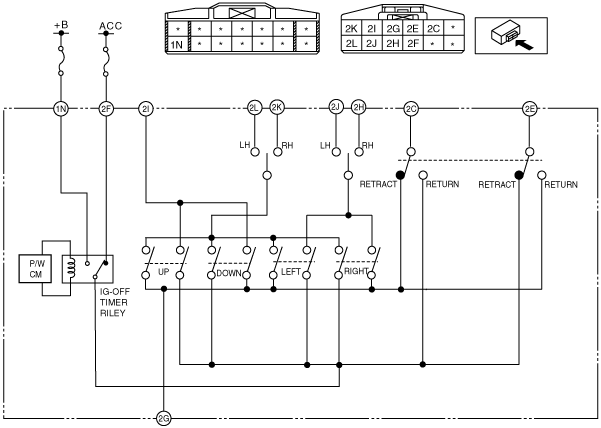

L.H.D.

am2zzw00005022

am2zzw00003831

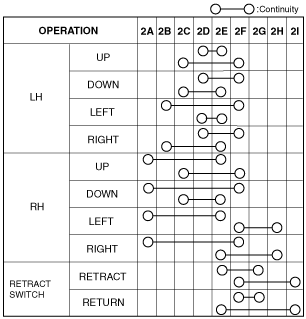

R.H.D.

am2zzw00005023

am2zzw00003832
