POWER OUTER MIRROR SWITCH INSPECTION [3HB]

id0912000034z3

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION [3HB].)

4.  Remove the switch panel. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY [3HB].)

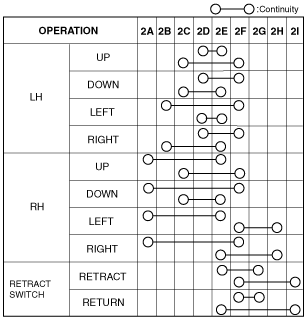

5.  Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch.

L.H.D.

am2zzw00005024

am2zzw00003518

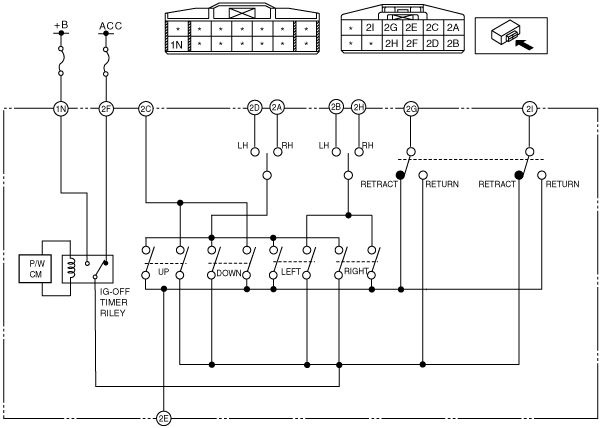

R.H.D.

am2zzw00005025

am2zzw00003834
