TRUNK LID RELEASE ACTUATOR INSPECTION

id091400457400

1.  Disconnect the negative battery cable.

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION [4SD].)

3.  Remove the trunk lid latch and release actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION.)

4.  Press the latch in using a flathead screwdriver to inspect the latch lever condition.

am2ccw00000150

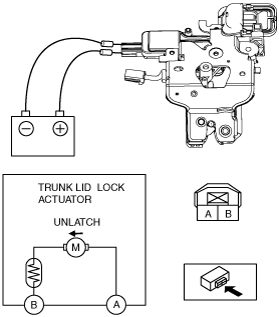

5.  Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

am2ccw00000151

•  If not as indicated in the table, replace the trunk lid latch and release actuator.

release actuator operation	Terminal
	B+	Ground
UNLATCH	A	B
