THEFT-DETERRENT SYSTEM WIRING DIAGRAM [ADVANCED KEYLESS AND START SYSTEM]

id0914b0100700

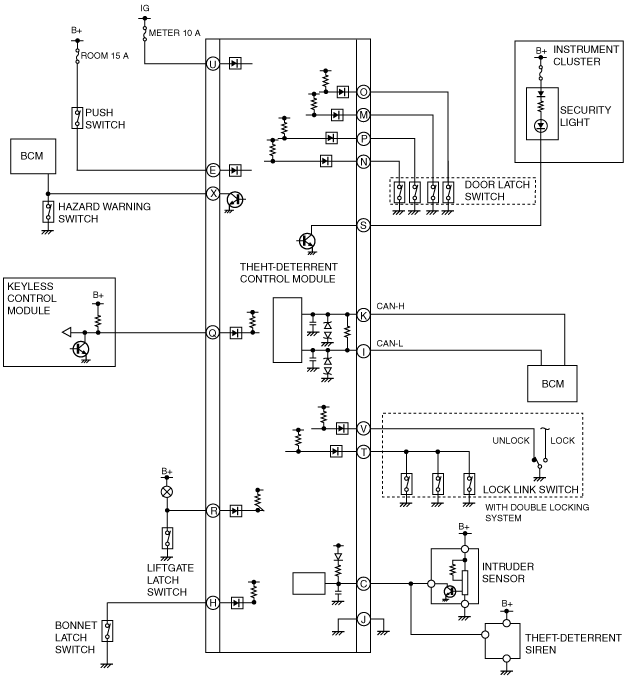

Except AutoAlliance Thailand (AAT) manufactured vehicles

am2zzn00001442

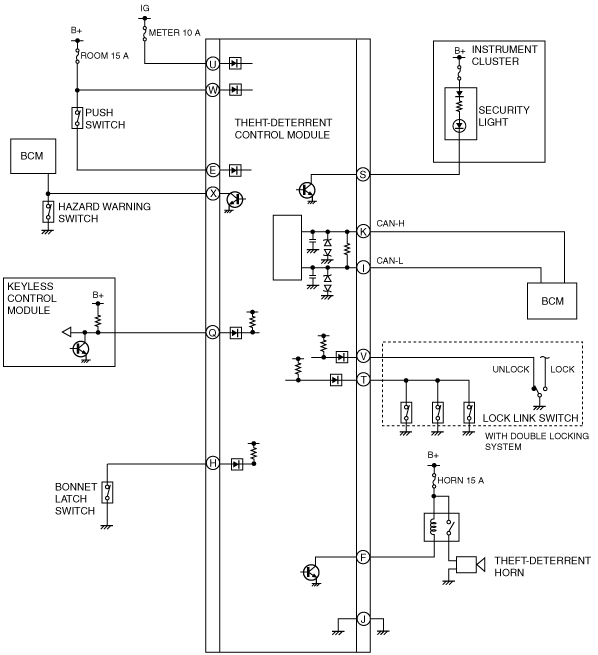

AutoAlliance Thailand (AAT) manufactured vehicles

am2zzn00001443
