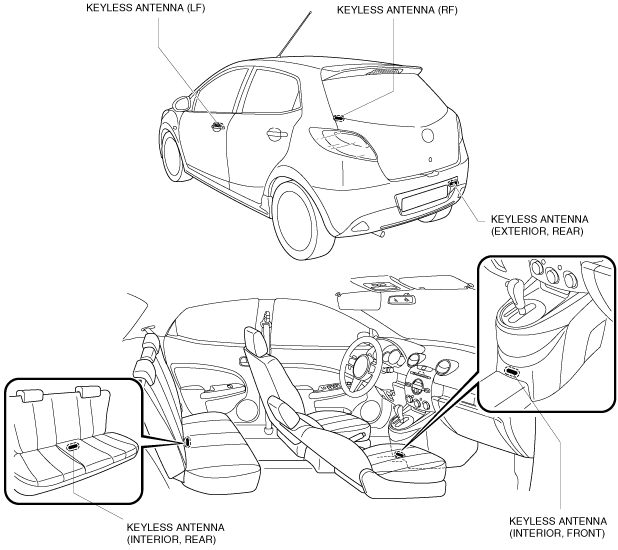

•  The antennas for request signal output form the request signal output range at 5 locations.

•  The keyless antenna outputs request signals to the inside and outside of the vehicle based on the signals from the keyless control module.

•  The keyless control module locates the advanced key by determining which antenna is receiving the signal.

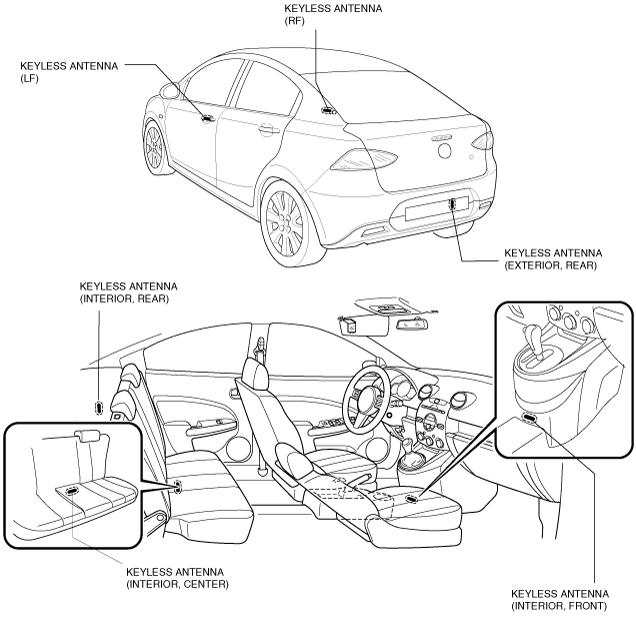

•  The antennas for request signal output form the request signal output range at 6 locations.

•  The keyless antenna outputs request signals to the inside and outside of the vehicle based on the signals from the keyless control module.

•  The keyless control module locates the advanced key by determining which antenna is receiving the signal.
