LIFTGATE OPENER SYSTEM OPERATION [KEYLESS ENTRY SYSTEM]

id0914b3000300

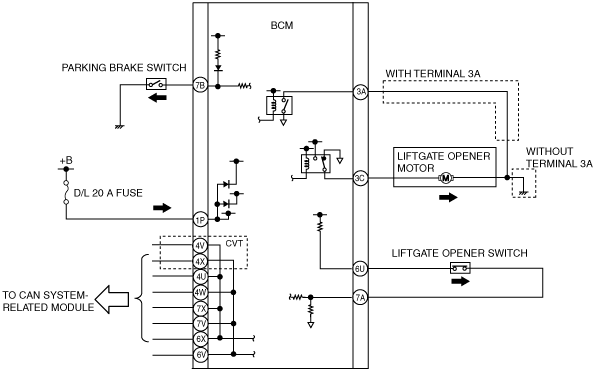

1.  When pressing the liftgate opener switch while the doors are unlocked, the liftgate opener switch turns on and a liftgate-open request signal is input to the BCM.

2.  The BCM unlocks the liftgate lock actuator (releases the latch) for approx. 1.5 s when the ignition switch is in the LOCK position or all the following conditions are met.

•  Ignition switch in the ON position

―  Selector lever is in P position (ATX/CVT)

―  Parking brake is applied (parking brake switch is on (MTX))

―  Vehicle speed is 3 km/h {2 mph} or less

―  Driver’s door is unlocked

•  Ignition switch in the off position

―  Vehicle is stopping (There is no vehicle speed input)

―  Driver’s door is unlocked

Note

•  It requires approx. 1 to 2 s for the liftgate lock actuator to perform an open operation after the liftgate opener switch is pressed.

3.  When the liftgate lock actuator motor operates, the latch lever is freed and the liftgate lifts up simultaneously via the spring force of the liftgate weatherstrip and stopper rubber, and opens.

am2zzn00001360
