THEFT-DETERRENT SYSTEM OPERATION [KEYLESS ENTRY SYSTEM]

id0914b3100800

Except AutoAlliance Thailand (AAT) manufactured vehicles

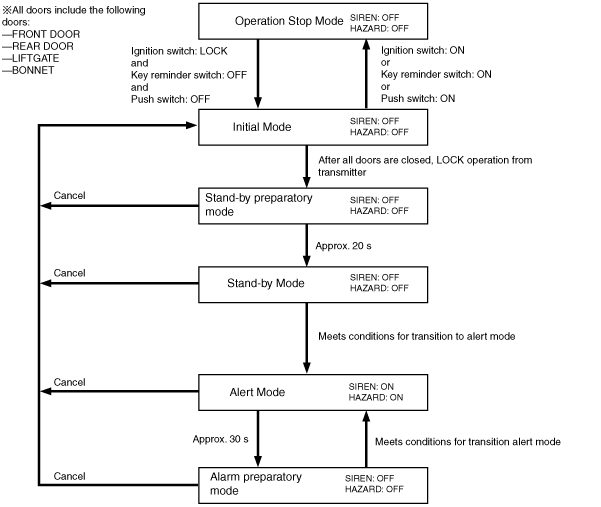

Mode Transition

•  The theft-deterrent control module switches the theft-deterrent system mode based on the ignition switch and door conditions.

am2zzn00000840

Operation Stop Mode

•  In this mode, all theft-deterrent system operations are stopped.

•  The system changes to the operation stop mode when any of the following conditions are met.

―  Ignition switch at ON

―  Key reminder switch on

―  Push switch on (Advanced keyless system)

Initial Mode

•  This mode is the preparatory mode before changing to the stand-by mode. The system does not change directly to the alert mode from this mode.

Transition condition to the initial mode

•  The system changes from the operation stop mode to the initial mode if all of the following conditions are met.

―  Ignition switch at LOCK

―  Key reminder switch off

―  Push switch off (Advanced keyless system)

•  The system changes from the stand-by mode, alert mode 1, and alert mode 2 to the initial mode if any of the following cancel conditions are met.

Transition condition to the stand-by preparation mode

•  The system changes to the stand-by preparation mode if any of the following conditions are met.

―  Locked using the transmitter (advanced key) LOCK button with the front doors, liftgate, and bonnet closed.

Stand-by preparatory mode

•  This is mode prior to the stand-by mode.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to the stand-by mode

•  If the stand-by preparation mode continues for approx. 20 s, the system changes to the stand-by mode.

Cancel conditions

•  If any of the following conditions are met, the stand-by preparation mode is canceled and the system changes to the initial mode.

―  Any door latch switch off (door is open), or liftgate latch switch on (liftgate is open), or bonnet latch switch off (bonnet is open)

―  Any door lock-link switch UNLOCK

―  Key reminder switch on, or ignition switch ON

―  Push switch on, and advanced key inside vehicle

―  Unlock operation using transmitter (advanced key)

Stand-by Mode

•  The system starts monitoring approx. 20 s after the doors are locked for unauthorized door opening/closing, or movement from an intrusion into the vehicle such as a window being broken.If any unauthorized operation is detected, the system changes to the alert mode.

•  If the cancel condition is met, the system changes to the initial mode.

Transition condition to the alert mode

•  If any of the following conditions are met, the system changes to the alert mode.

―  Ignition switch ON (key reminder switch off, or push switch off)

―  door latch switch off (door is open)

―  Liftgate latch switch on (liftgate is open)

―  Bonnet latch switch off (bonnet is open)

―  Door lock-link switch UNLOCK

―  Intrusion into vehicle is detected by intruder sensor

Cancel Condition

•  If any of the following conditions are met, the stand-by mode is canceled and the system changes to the initial mode.

―  Unlock operation using transmitter (advanced key)

―  Key reminder switch on, ignition switch ON, and engine start

―  Ignition switch at ON using advanced start function (Advanced key is inside vehicle, and push switch on), and engine start

―  Driver's side door lock-link switch at LOCK and liftgate opener switch on (with advanced key)

Alert Mode

•  In this mode, the horn and hazard warning lights are operated to alert the surrounding area.

•  When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.

•  If the cancel conditions are met, the system changes to the initial mode.

am2zzn00001344

Transition condition to the alert preparation mode

•  When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparation mode.

•  The alarm period is not extended even if a transition condition to alert 1 mode is met again during an alarm period.

Cancel Condition

•  If any of the following conditions are met, the alert mode is canceled and the system changes to the initial mode.

―  Unlock operation using transmitter (advanced key)

―  Key reminder switch on, ignition switch ON, and engine start

―  Ignition switch at ON using advanced start function (Advanced key is inside vehicle, and push switch on), and engine start

―  Driver's door lock-link switch LOCK and liftgate opener switch on (with advanced key)

Alert preparation mode

•  In the alert preparation mode, the horn and hazard warning light are not operated, however, the alarm triggers immediately if the condition is changed.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to alert mode

•  The system changes to the alert mode if any of the following conditions are met.

―  Ignition switch ON (key reminder switch off, or push switch off)

―  Door latch switch off (door is open)

―  Liftgate latch switch on (liftgate is open)

―  Bonnet latch switch off (bonnet is open)

―  Door lock-link switch UNLOCK

―  Intrusion into vehicle is detected by intruder sensor

Cancel Condition

•  If any of the following conditions are met, the alert preparation mode is canceled and the system changes to the initial mode.

―  Unlock operation using transmitter (advanced key)

―  Key reminder switch on, ignition switch ON, and engine start

―  Ignition switch at ON using advanced start function (Advanced key is inside vehicle, and push switch on), and engine start

―  Driver's door lock-link switch at LOCK and liftgate opener switch on (with advanced key)

AutoAlliance Thailand (AAT) manufactured vehicles

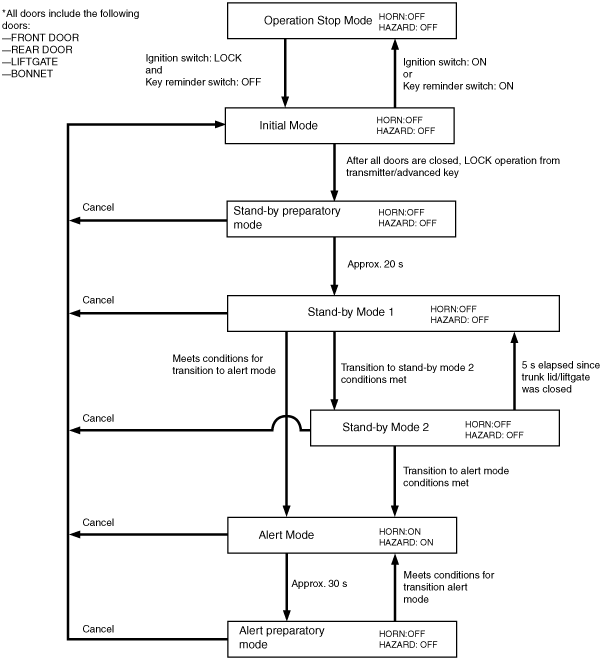

Mode Transition

•  The BCM switches the theft-deterrent system mode based on the push button start and door conditions.

am2zzn00001343

Operation Stop Mode

•  In this mode, all theft-deterrent system operations are stopped.

•  The system changes to the operation stop mode when any of the following conditions are met.

―  Ignition switch at ON

―  Key reminder switch ON or ACC

Initial Mode

•  This mode is the preparatory mode before changing to the stand-by mode. The system does not change directly to the alert mode from this mode.

Transition condition to the initial mode

•  The system changes from the operation stop mode to the initial mode if all of the following conditions are met.

―  Ignition switch at LOCK

―  Key reminder switch off

•  The system transitions from stand-by preparatory mode, stand-by mode 1, stand-by mode 2, alert mode, and alert preparatory mode to the initial mode if the cancel conditions in each mode are met.

Transition condition to the stand-by preparatory mode

•  The system changes to the stand-by preparatory mode if any of the following conditions are met.

―  A lock operation was performed using the transmitter/advanced key lock button or the key with all the doors, liftgate, and bonnet closed.

Note

•  The hazard warning lights flash once.

Stand-by preparatory mode

•  This is mode prior to the stand-by mode1.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to the stand-by mode

•  If the stand-by preparatory mode continues for approx. 20 s, the system changes to the stand-by mode1.

Cancel conditions

•  If any of the following conditions are met, the stand-by preparatory mode is canceled and the system changes to the initial mode.

―  Any door latch switch off (door is open), or liftgate latch switch on (liftgate is open), or bonnet latch switch off (bonnet is open)

―  Any door lock-link switch UNLOCK

―  Key reminder switch on

―  Ignition switch at ACC or ON

―  Unlock operation using transmitter/advanced key

―  The driver-side door key cylinder is unlocked.

Stand-by Mode 1

•  The mode monitors for unauthorized door opening/closing approx. 20 s after the doors are locked. If any unauthorized operation is detected, the system changes to alert mode.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to the alert mode

•  If any of the following conditions are met, the system changes to the alert mode.

―  Ignition switch at ON (key reminder switch off or ACC off)

―  Door latch switch off (door is open)

―  Lifgate latch switch on (liftgate is open)

―  Bonnet latch switch off (bonnet is open)

―  Door lock-link switch UNLOCK

Transition condition to stand-by mode 2

•  The system transitions to the stand-by mode 2 if any of the following conditions are met.

―  Liftgate open switch (vehicle exterior) is on and liftgate latch switch is on (liftgate open)

Cancel Condition

•  If any of the following conditions are met, the stand-by mode is canceled and the system changes to the initial mode.

―  Unlock operation using transmitter/advanced key

―  Key reminder switch on, Ignition switch at ON, and engine start

―  Ignition switch at ACC, Ignition switch at ON and engine start (advanced key)

―  The driver-side door key cylinder is unlocked.

―  Key reminder switch on, Ignition switch at ON

―  Ignition switch at ACC, Ignition switch at ON (advanced key)

Stand-by mode 2

•  The system transitions to this mode when the liftgate is opened/closed using a correct method after it has been locked. If an unauthorized operation other than the liftgate is detected even while in this mode, the system transitions to alert mode.

•  When opening/closing of the liftgate using an appropriate method is completed, the system transitions to stand-by mode 1.

•  If the cancel condition is met, the system transitions to the initial mode.

Cancel Condition

•  If any of the following conditions are met, the stand-by mode 2 is canceled, and the system changes to the initial mode.

―  Unlock operation using transmitter/advanced key

―  Key reminder switch on, Ignition switch at ON

―  Ignition switch at ACC, Ignition switch at ON (advanced key)

―  The driver-side door key cylinder is unlocked.

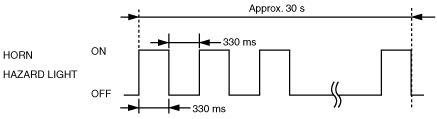

Alert Mode

•  In this mode, the horn and hazard warning lights are operated to alert the surrounding area.

•  When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.

•  If the cancel conditions are met, the system changes to the initial mode.

am2zzn00001342

Transition condition to the alert preparatory mode

•  When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.

•  The alarm period is not extended even if a transition condition to alert mode is met again during an alarm period.

Cancel Condition

•  If any of the following conditions are met, the alert mode is canceled, and the system changes to the initial mode.

―  Unlock operation using transmitter/advanced key

―  Key reminder switch on, Ignition switch at ON, and engine start

―  Ignition switch at ACC, Ignition switch at ON and engine start (advanced key)

―  The driver-side door key cylinder is unlocked.

Alert preparatory mode

•  In the alert preparatory mode, the horn and hazard warning light are not operated, however, the alarm triggers immediately if the condition is changed.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to alert mode

•  The system changes to the alert mode if any of the following conditions are met.

Note

•  Once the system switches to the alert mode, the system transitions to the alert mode by turning the following switches ON/OFF.

―  Ignition switch at ON (key reminder switch off)

―  Door latch switch off (door is open)

―  Liftgate latch switch on (liftgate is open)

―  Bonnet latch switch off (bonnet is open)

―  Door lock-link switch UNLOCK

Cancel Condition

•  If any of the following conditions are met, the alert preparatory mode is canceled and the system changes to the initial mode.

―  Unlock operation using transmitter/advanced key

―  Key reminder switch on, Ignition switch at ON, and engine start

―  Ignition switch at ACC, Ignition switch at ON and engine start (advanced key)

―  The driver-side door key cylinder is unlocked.
