RADIATOR GRILLE REMOVAL/INSTALLATION

id091600468000

Standard Type

1.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

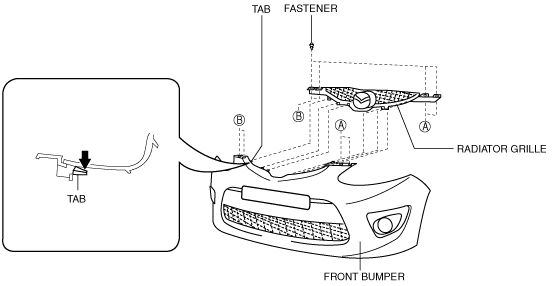

2.  Remove the fasteners.

am2zzw00001890

3.  Press the tab in the direction of the arrow shown in the figure and detach the front bumper from the radiator grille.

4.  Remove the radiator grille.

5.  Install in the reverse order of removal.

Sport Type

1.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

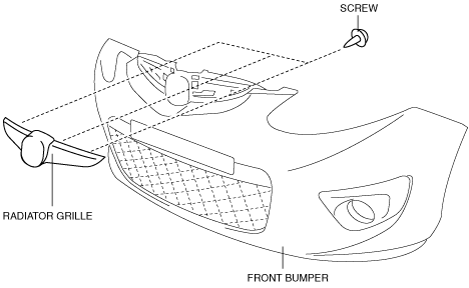

2.  Remove the screws, and remove the radiator grille.

am2zzw00001891

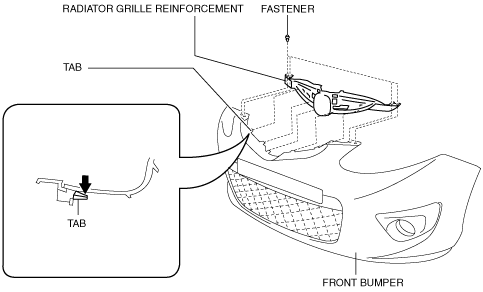

3.  Remove the fasteners.

am2zzw00001892

4.  Press the tab in the direction of the arrow shown in the figure and detach the front bumper from the radiator grille reinforcement.

5.  Remove the radiator grille reinforcement.

6.  Install in the reverse order of removal.
