HEADLIGHT LEVELING SYSTEM OPERATION

id091800504900

1.  Switch the headlight leveling switch.

2.  The headlight leveling actuator detects the output voltage of the headlight leveling switch.

3.  The motor inside the headlight leveling actuator operates according to the output voltage of the headlight leveling switch, adjusting the headlight reflector height.

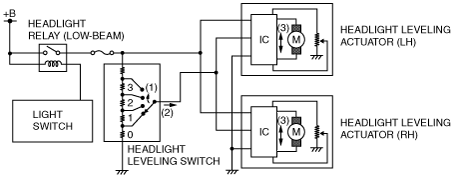

am2zzn00001440
