REAR COMBINATION LIGHT CONSTRUCTION


id091800505000

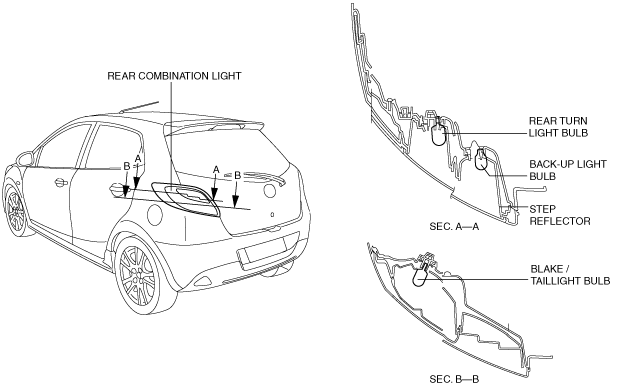

5HB/3HB

•  Light distribution is controlled by a step reflector which diffuses and reflects the light emitted from the bulb, which enables the adoption of a flat lens without lens cutting.
•  Rear combination lights have been adopted in which the brake/taillight, rear turn light, and back-up light are integrated.
am2zzn00001291

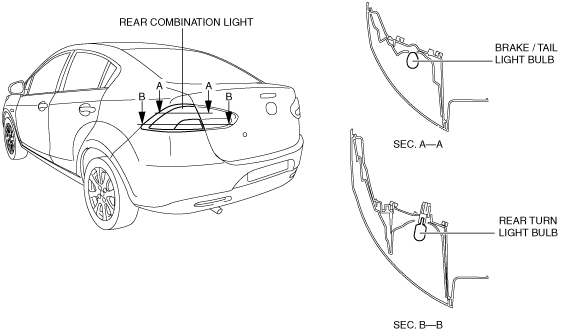

4SD

•  Light distribution is controlled by a step reflector which diffuses and reflects the light emitted from the bulb, which enables the adoption of a flat lens without lens cutting.
•  Rear combination lights have been adopted in which the brake/taillight and rear turn light are integrated.
am2zzn00001367
