FRONT COMBINATION LIGHT CONSTRUCTION [WITHOUT LED HEADLIGHT]
id0918005245c2

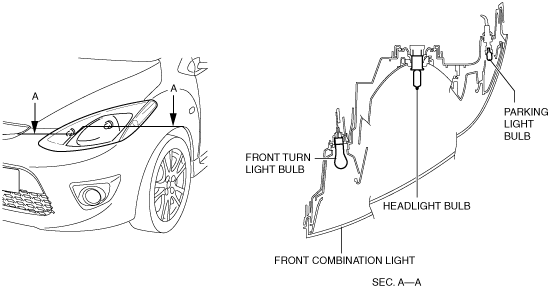

2-Beam Type
• Front combination lights in which the headlight, front turn light, and parking light are integrated have been adopted to improve design ability.

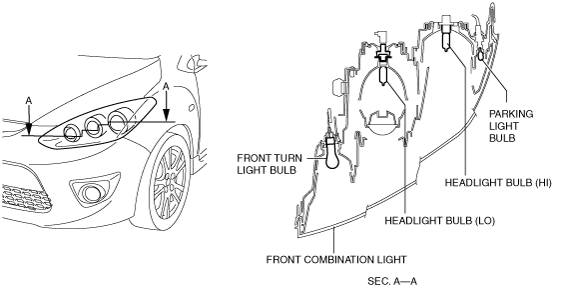

4-Beam Type
• Front combination lights in which the headlight, front turn light, and parking light are integrated have been adopted to improve design ability.
• Projector-type halogen headlights have been adopted which emit light over a wide-area from the headlights.
Projector-type headlight
-
• Light emitted from the first focal point is projected off the reflector, gathered at the second focal point, and output through the convex lens.
