HEADLIGHT BULB REMOVAL/INSTALLATION

id091800800500


Without LED Headlight


2-Beam type headlight

1.  Disconnect the negative battery cable.

2.  Disconnect the connector.

am2zzw00002485

3.  Remove the rubber cover.

am2zzw00002486

4.  Press the bulb retaining wire in the direction of the arrow to release the lock.

5.  Remove the headlight bulb.

Caution
•  A bulb generates extremely high heat when it is illuminated.If the surface of the bulb is soiled, heat of higher temperature than normal will build, shortening the life of the bulb. When replacing the bulb, hold the metal flange, not the glass.

6.  Install in the reverse order of removal.


4-Beam type headlight

Low-beam
•  Disconnect the negative battery cable.
•  Disconnect the connector.
am2zzw00002485
•  Remove the rubber cover.
am2zzw00002486
•  Press the bulb retaining wire in the direction of the arrow to release the lock.
•  Remove the headlight bulb.
Caution
•  A bulb generates extremely high heat when it is illuminated.If the surface of the bulb is soiled, heat of higher temperature than normal will build, shortening the life of the bulb. When replacing the bulb, hold the metal flange, not the glass.
•  Install in the reverse order of removal.
High-beam
•  Disconnect the negative battery cable.

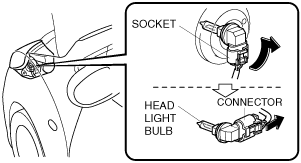

•  Rotate the socket in the direction of the arrow shown in the figure to remove it.
am2zzw00003718
•  Disconnect the connector.
•  Remove the headlight bulb.
Caution
•  A bulb generates extremely high heat when it is illuminated.If the surface of the bulb is soiled, heat of higher temperature than normal will build, shortening the life of the bulb. When replacing the bulb, hold the metal flange, not the glass.
•  Install in the reverse order of removal.


With LED Headlight

•  The LED for the headlight (LO/HI) cannot be replaced separately. If there is any malfunction in the LED, replace the front combination light as a single unit. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
