FRONT FOG LIGHT AIMING

id091800802200

1.  Make a front fog light adjustment screen as shown in the figure using double-weight, white paper.

am2zzw00004440

2.  Adjust the tire pressure to the specification.

3.  Position the unloaded vehicle on a flat, level surface.

4.  Seat one person in the driver’s seat.

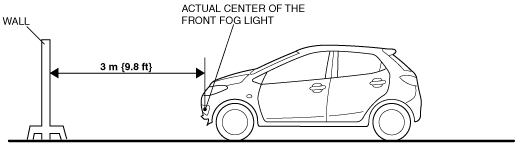

5.  Line up the vehicle with the wall so that the center of the front fog light is 3 m {9.8 ft} away from the wall.

am2zzw00004442

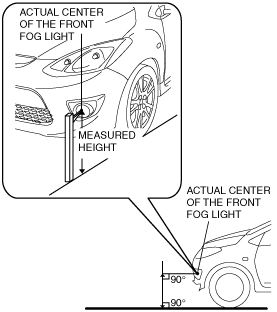

6.  Measure the height at the center of the front fog light.

am2zzw00004966

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the front fog light using the actual vehicle.

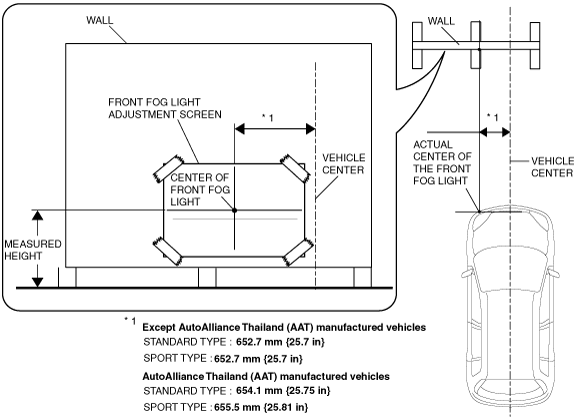

7.  Align the center of the front fog light with the center of the screen.

am2zzw00004441

8.  Block the light of the other front fog light using a partition.

9.  Start the engine so that the battery remains charged.

10.  Turn the front fog lights on.

11.  Verify that brightness border line of the front fog light is at the position indicated on the adjustment screen.

•  If the brightness border line is not at the position indicated on the adjustment screen, perform the following adjustment.

12.  Remove the screws shown in the figure and bend back the mudguard in the direction of the arrow.

am2zzw00002506

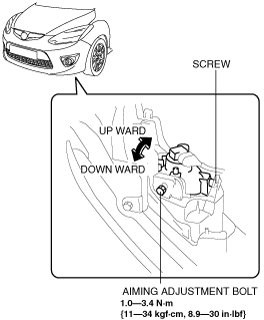

13.  Loosen the aiming adjustment bolt, adjust the center of the front fog light to the position shown in the figure, and tighten the screws.
