REAR WIPER SYSTEM OPERATION

id091900526000

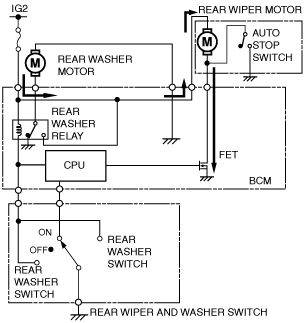

Continuous Operation

1.  When the rear wiper switch turns on, the BCM turns the FET on.

2.  When the FET turns on, current flows to the rear wiper motor and the rear wiper motor operates.

am2zzn00003926

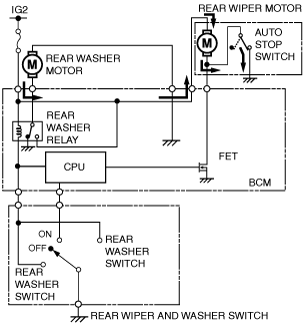

Auto-stop Operation

1.  When the rear wiper switch is turned to the OFF position while the wipers are operating, current flows to the auto-stop switch, which is on, and the rear wiper motor operates until it returns to the park position, stopping the wipers.

am2zzn00003927

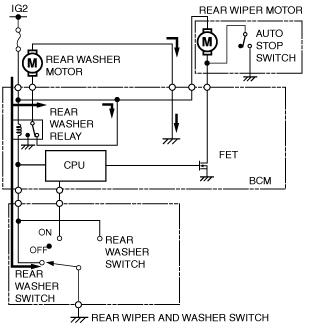

Washer Operation

1.  When the rear washer switch is pressed on, the rear washer relay turns on and the rear washer motor operates.
