CENTER PANEL UNIT CONSTRUCTION
id092000101500
Structural View
WITHOUT CD/USB/AUX switch
am2zzn00001102
|
WITH CD/USB/AUX switch
am2zzn00001571
|
Input/Output Signals
Without CD/USB/AUX switch
Audio unit
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Front door speaker LH (+)
|
|
1B
|
B+
|
|
|
1C
|
Front door speaker LH (–)
|
|
|
1D
|
Front door speaker RH (+)
|
|
|
1E
|
TNS (+)
|
|
|
1F
|
Front door speaker RH (–)
|
|
|
1G
|
ILLMI (–)
|
|
|
1H
|
―
|
|
|
1I
|
Vehicle speed signal
|
|
|
1J
|
―
|
|
|
1K
|
―
|
|
|
1L
|
―
|
|
|
1M
|
―
|
|
|
1N
|
Audio control switch 1
|
|
|
1O
|
―
|
|
|
1P
|
Audio control switch 2
|
|
|
1Q
|
―
|
|
|
1R
|
ACC
|
|
|
1S
|
Rear door speaker (5HB/4SD)/rear speaker (3HB) LH (+)
|
|
|
1T
|
―
|
|
|
1U
|
Rear door speaker (5HB/4SD)/rear speaker (3HB) LH (-)
|
|
|
1V
|
Rear door speaker (5HB/4SD)/rear speaker (3HB) RH (+)
|
|
|
1W
|
Power ground
|
|
|
1X
|
Rear door speaker (5HB/4SD)/rear speaker (3HB) RH (-)
|
|
 |
2A
|
Power ground
|
|
2B
|
―
|
|
|
2C
|
Audio input RH (+)
|
|
|
2D
|
Audio input RH (-)*1
|
|
|
2E
|
Audio input LH (+)
|
|
|
2F
|
Audio input LH (-)*1
|
|
|
2G
|
Signal ground*2
|
|
|
2H
|
―
|
|
|
2I
|
―
|
|
|
2J
|
―
|
|
|
2K
|
―
|
|
|
2L
|
―
|
|
|
2M
|
AUX control
|
|
|
2N
|
―
|
|
|
2O
|
―
|
|
|
2P
|
―
|
|
WITH CD/USB/AUX switcht
Audio unit
|
Terminal |
Signal |
|
|---|---|---|
|
1A
|
Front door speaker LH (+)
|
|
1B
|
B+
|
|
|
1C
|
Front door speaker LH (–)
|
|
|
1D
|
Front door speaker RH (+)
|
|
|
1E
|
TNS (+)
|
|
|
1F
|
Front door speaker RH (–)
|
|
|
1G
|
ILLMI (–)
|
|
|
1H
|
―
|
|
|
1I
|
Vehicle speed signal
|
|
|
1J
|
―
|
|
|
1K
|
―
|
|
|
1L
|
―
|
|
|
1M
|
―
|
|
|
1N
|
Audio control switch 1
|
|
|
1O
|
―
|
|
|
1P
|
Audio control switch 2
|
|
|
1Q
|
―
|
|
|
1R
|
ACC
|
|
|
1S
|
Rear door speaker (5HB/4SD)/rear speaker (3HB) LH (+)
|
|
|
1T
|
―
|
|
|
1U
|
Rear door speaker (5HB/4SD)/rear speaker (3HB) LH (-)
|
|
|
1V
|
Rear door speaker (5HB/4SD)/rear speaker (3HB) RH (+)
|
|
|
1W
|
Power ground
|
|
|
1X
|
Rear door speaker (5HB/4SD)/rear speaker (3HB) RH (-)
|
|
 |
2A
|
―
|
|
2B
|
―
|
|
|
2C
|
AUX DET
|
|
|
2D
|
―
|
|
|
2E
|
AUX LH (+)
|
|
|
2F
|
―
|
|
|
2G
|
AUX RH (+)
|
|
|
2H
|
―
|
|
|
2I
|
―
|
|
|
2J
|
―
|
|
|
2K
|
AUX LH,RH (-)
|
|
|
2L
|
Power ground
|
|
 |
3A
|
Power ground
|
|
3B
|
DATA (+)
|
|
|
3C
|
Vbus
|
|
|
3D
|
DATA (-)
|
|
Antenna feeder connector
|
Terminal |
Signal |
|
|---|---|---|
 |
4A
|
Antenna control
|
|
4B
|
Antenna
|
|

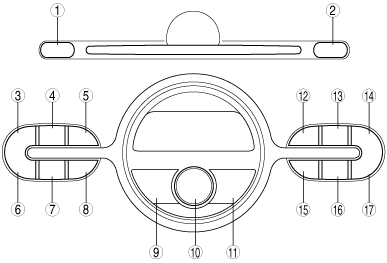

Switch Location
Without CD/USB/AUX switch
am2zzn00001098
|
|
No. |
Without RDS (radio data system) |
With RDS (radio data system) |
|---|---|---|
|
1
|
LOAD switch
|
|
|
2
|
EJECT switch
|
|
|
3
|
SEEK switch (+)
|
|
|
4
|
FM/AM switch
|
|
|
5
|
TEXT switch
|
TA switch
|
|
6
|
SEEK switch (-)
|
|
|
7
|
CD/AUX switch
|
|
|
8
|
CLOCK switch
|
|
|
9
|
MENU switch
|
|
|
10
|
POWER/VOLUME switch
|
|
|
11
|
AUTO-M switch
|
|
|
12
|
Preset switch 1
|
|
|
13
|
Preset switch 2
|
|
|
14
|
Preset switch 3/Disk up switch (with MP3 applicable CD changer)
|
|
|
15
|
Preset switch 4
|
|
|
16
|
Preset switch 5
|
Preset switch 5/TEXT switch
|
|
17
|
Preset switch 6/Disk down switch (with MP3 applicable CD changer)
|
|

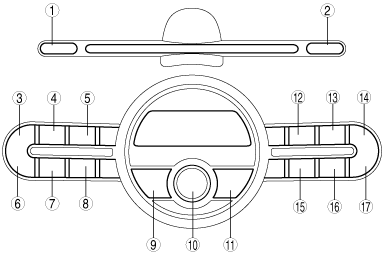

With CD/USB/AUX switch
am2zzn00001565
|
|
No. |
Without RDS (radio data system) |
With RDS (radio data system) |
|---|---|---|
|
1
|
CLOCK switch
|
|
|
2
|
EJECT switch
|
|
|
3
|
TUNE/TRACK up switch
|
|
|
4
|
FM/AM switch
|
|
|
5
|
SCAN switch
|
|
|
6
|
TUNE/TRACK down switch
|
|
|
7
|
CD/USB/AUX switch
|
|
|
8
|
TEXT switch
|
TA switch
|
|
9
|
MENU switch
|
|
|
10
|
POWER/VOLUME switch
|
|
|
11
|
AUTO-M/CAT switch
|
|
|
12
|
Preset switch 1
|
|
|
13
|
Preset switch 2
|
|
|
14
|
Preset switch 3/FLDR up switch
|
|
|
15
|
Preset switch 4/SCAL switch
|
Preset switch 4/TEXT switch
|
|
16
|
Preset switch 5
|
Preset switch 5/SCAL switch
|
|
17
|
Preset switch 6/FLDR down switch
|
|
