REAR FENDER RAIN RAIL AND CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008611900

Symbol Mark

am2ccb00000004

Removal Procedure

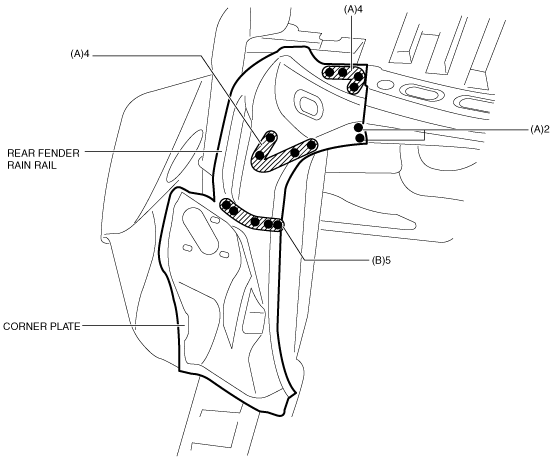

1.  Drill the 10 locations indicated by (A) shown in the figure.

am2ccb00000014

Note

•  When removing the rear fender rain rail and the corner plate separately, drill the 5 locations indicated by (B) shown in the figure.

2.  Remove the rear fender rain rail and corner plate.
