SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]

id098008743700

Symbol Mark

am2zzb00000167

Removal Procedure (Front-side)

5HB

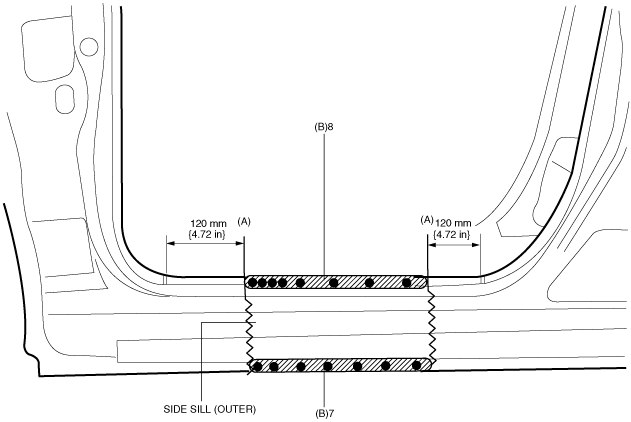

1.  Rough cut area locations indicated by (A) then drill the 15 locations indicated by (B) shown in the figure.

am2zzb00000257

2.  Remove the side sill (outer).

3HB

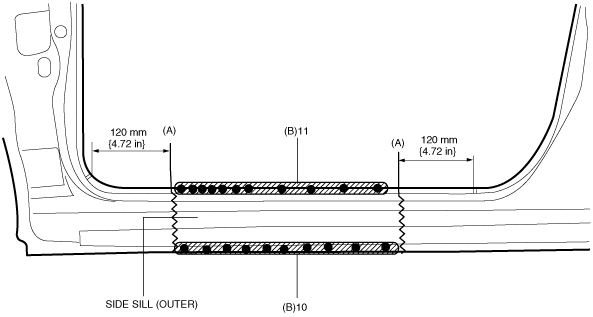

1.  Rough cut area locations indicated by (A) then drill the 21 locations indicated by (B) shown in the figure.

am2zzb00000255

2.  Remove the side sill (outer).

4SD

1.  Rough cut area locations indicated by (A) then drill the 15 locations indicated by (B) shown in the figure.

am2zzb00000319

2.  Remove the side sill (outer).

Removal Procedure (Component)

5HB

Caution

•  During rough cutting, be careful not to damage the hinge reinforcement and the hinge pillar reinforcement, wheel house (outer), center pillar reinforcement and side sill (inner).

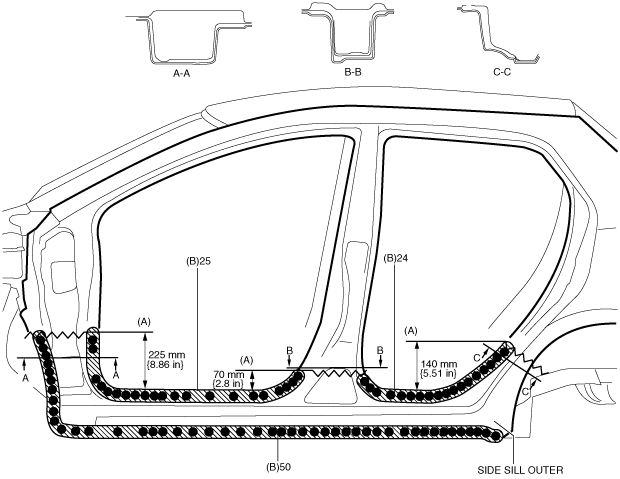

1.  Rough cut area locations indicated by (A) then drill the 99 locations indicated by (B) shown in the figure.

am2zzb00000169

2.  Remove the side sill (outer).

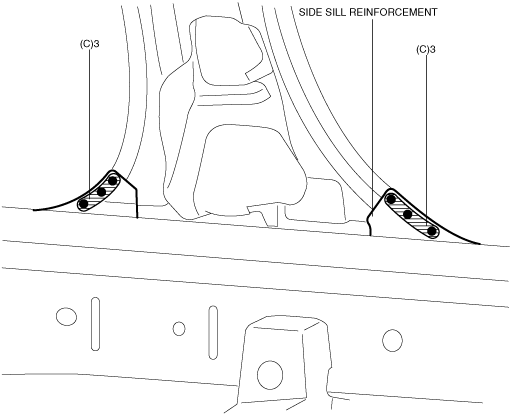

3.  Drill the 6 locations indicated by (C) shown in the figure.

am2zzb00000170

Note

•  Drill the 6 locations indicated by (C) from the interior.

4.  Drill the 10 locations indicated by (D) shown in the figure.

am2zzb00000171

5.  Remove the side sill reinforcement in the direction of the arrow shown in the figure.

4SD

Caution

•  During rough cutting, be careful not to damage the hinge reinforcement and the hinge pillar reinforcement, wheel house (outer), center pillar reinforcement and side sill (inner).

1.  Rough cut area locations indicated by (A) then drill the 99 locations indicated by (B) shown in the figure.

am2zzb00000320

2.  Remove the side sill (outer).

3.  Drill the 6 locations indicated by (C) shown in the figure.

am2zzb00000321

Note

•  Drill the 6 locations indicated by (C) from the interior.

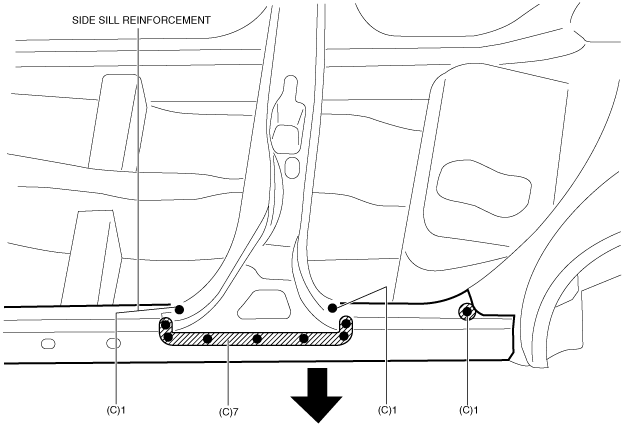

4.  Drill the 10 locations indicated by (D) shown in the figure.

am2zzb00000322

5.  Remove the side sill reinforcement in the direction of the arrow shown in the figure.
