ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Mark

am2zzb00000199

Removal Procedure

3HB, 5HB

1.  Drill the 72 locations indicated shown in the figure.

am2zzb00000200

2.  Remove the roof panel.

4SD

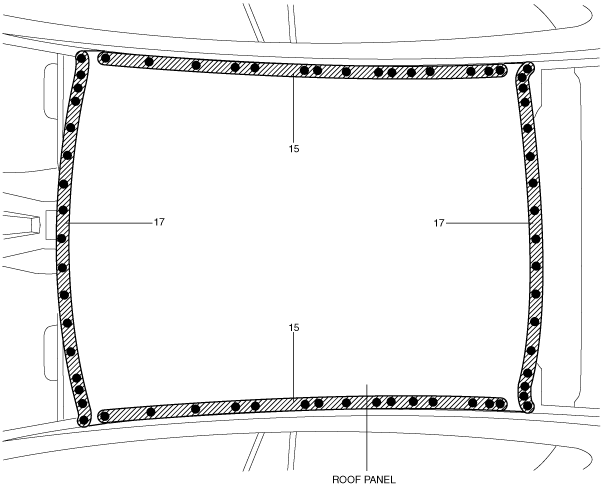

1.  Drill the 64 locations indicated shown in the figure.

am2zzb00000327

2.  Remove the roof panel.
