REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

am2zzb00000212

Removal Procedure

3HB, 5HB

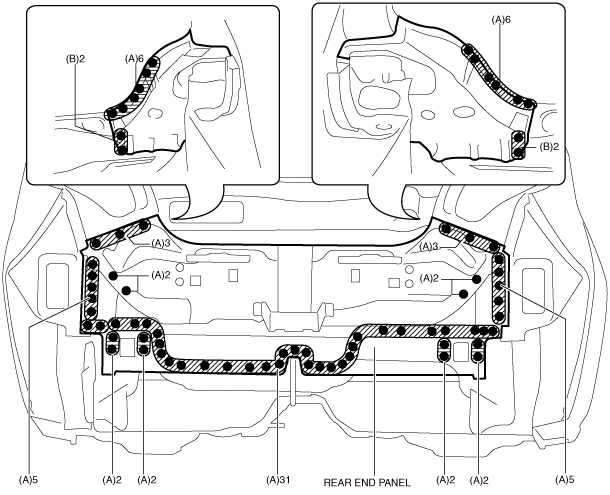

1.  Drill the 71 locations indicated by (A) and 4 locations indicated by (B) shown in the figure.

am2zzb00000213

Note

•  Drill the 4 locations indicated by (B) from the interior.

2.  Remove the rear end panel.

4SD

1.  Drill the 55 locations indicated shown in the figure.

am2ccb00000017

2.  Remove the rear end panel.
