REAR BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010746300
3HB, 5HB

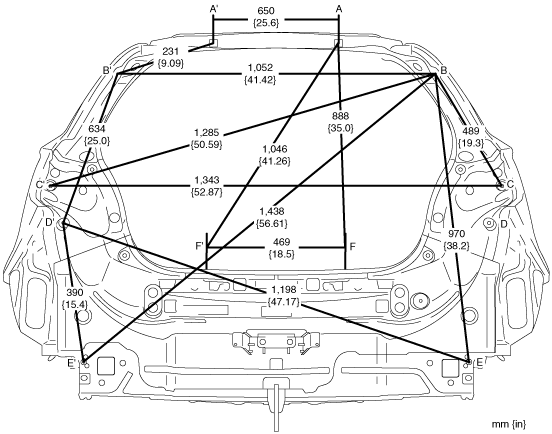

am2zzb00000272
|

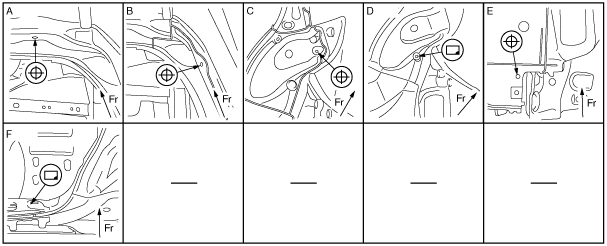

adejjb00000005
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
φ14 {0.55}
|
|
B
|
Liftgate dumper installation hole
|
φ10 {0.39}
|
|
C
|
Corner plate datum hole
|
φ8 {0.3}
|
|
D
|
Corner plate square hole
|
-
|
|
E
|
Rear end panel datum hole
|
φ8.5 {0.33}
|
|
F
|
Rear end trim installation hole
|
-
|
4SD

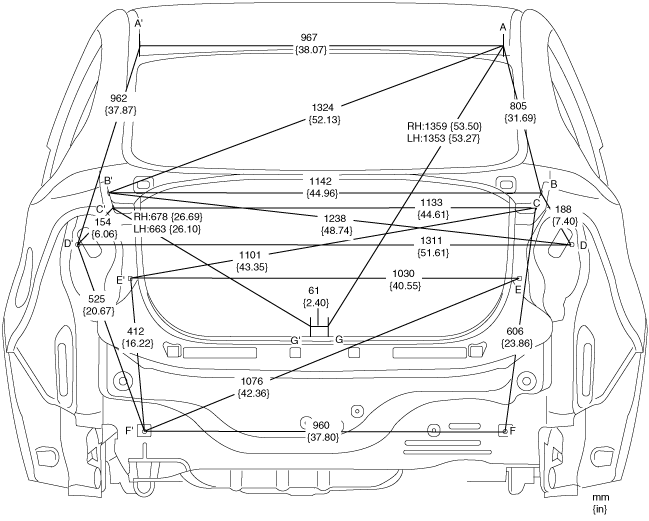

am2ccb00000032
|

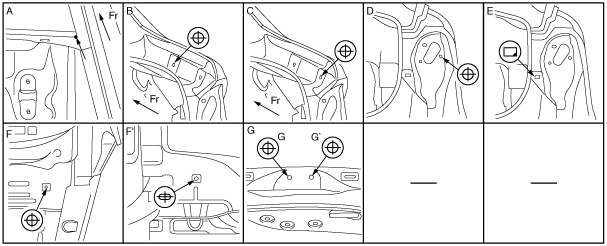

am2ccb00000033
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Roof panel projection location
|
-φ
|
|
B
|
Trunk lid hinge installation hole
|
φ10 {0.39}
|
|
C
|
Trunk lid hinge installation hole
|
φ10 {0.39}
|
|
D
|
Corner plate datum hole
|
φ10 {0.39}
|
|
E
|
Corner plate square hole
|
8×8
{0.3×0.3}
|
|
F
|
Rear end panel datum hole
|
RH:φ12 {0.47}
LH:12×16
{0.47×0.63}
|
|
G
|
Trunk lid striker installation hole
|
φ10 {0.39}
|
