BODY COMPONENTS CONSTRUCTION [AutoAlliance (AAT) Thailand manufactured vehicles]

id0980137397c1

5HB

Australian, General (L.H.D. R.H.D.) specs.

am2zzb00000001

No.

Part Name

Ultra high-tension Steel

High-tension Steel

Rust Proof Steel

Thickness (mm) {in}

1

Bonnet

-

x

x

0.60 {0.024}

2

Front bumper bracket

-

x

x

2.90 {0.114}

3

Front side frame (outer)

x

-

x

1.40 {0.055}

4

Apron reinforcement No.3

-

-

x

1.40 {0.055}

5

Front suspension housing (upper)

-

x

x

2.30 {0.091}

6

Front suspension housing (lower)

-

-

x

1.00 {0.039}

7

Apron reinforcement (upper)

-

-

x

0.90 {0.039}

8

Apron reinforcement (lower)

-

-

-

1.00 {0.039}

9

Cowl side reinforcement (Front)

-

-

x

0.75 {0.030}

10

Cowl side reinforcement (Rear)

-

-

-

1.00 {0.039}

11

Cowl side panel

x

-

x

1.60 {0.063}

12

Hinge gusset

x

-

-

2.30 {0.091}

13

Front side frame inner

Front

x

-

x

1.40 {0.055}

Rear

x

-

x

1.80 {0.071}

14

Front frame Rear

x

-

x

2.00 {0.079}

15

Front frame Rear reinforcement

x

-

x

2.30 {0.091}

16

Front frame gusset

-

x

x

2.00 {0.079}

17

Front frame (inner) reinforcement

x

-

x

2.00 {0.079}

18

Torque box

-

x

x

1.60 {0.063}

19

Front fender panel

-

-

-

0.65 {0.026}

20

Front fender bracket

-

-

-

1.40 {0.055}

21

Dash lower member

-

-

x

1.80 {0.071}

22

Dash lower panel

-

-

x

0.75 {0.030}

23

Dash side reinforcement (upper)

x

-

-

2.00 {0.079}

24

Dash side reinforcement (lower)

x

-

-

1.60 {0.063}

25

Dash lower reinforcement

x

-

-

2.00 {0.079}

26

Cowl panel

-

-

x

0.70 {0.028}

27

Dash upper panel

-

-

x

0.80 {0.031}

28

Cowl upper plate

-

-

x

1.00 {0.039}

29

Wiper bracket

-

-

x

1.60 {0.063}

30

Hinge pillar (inner)

x

-

-

1.20 {0.047}

31

Hinge pillar reinforcement

x

-

-

1.40 {0.055}

32

Side sill (inner)

Front

x

-

x

1.60 {0.063}

Rear

x

-

-

1.20 {0.047}

33

Side sill (inner, Rear)

x

-

x

1.20 {0.047}

34

Side sill reinforcement

x

-

x

1.40 {0.055}

35

Side sill reinforcement (Rear)

x

-

x

1.00 {0.039}

36

Front pillar (inner)

x

-

-

1.00 {0.039}

37

Front pillar reinforcement

x

-

-

1.00 {0.039}

38

Front pillar reinforcement (upper)

×

-

-

1.20 {0.047}

39

Center pillar (inner)

-

x

-

1.00 {0.039}

40

Center pillar reinforcement

Upper

x

-

-

1.80 {0.071}

Lower

x

-

-

1.20 {0.047}

41

B-pillar reinforcement (inner)

-

x

-

1.20 {0.047}

42

Hinge reinforcement

x

-

-

1.40 {0.055}

43

Roof rail (inner)

x

-

-

1.00 {0.039}

44

Roof rail reinforcement

x

-

-

1.20 {0.047}

45

Front header

-

-

-

0.55 {0.022}

46

Roof reinforcement

x

-

-

1.00 {0.039}

47

Roof reinforcement

-

-

-

0.55 {0.022}

48

Rear header

-

-

-

0.80 {0.031}

49

Roof panel

-

-

-

0.65 {0.026}

50

Rear pillar (outer)

-

-

x

0.65 {0.026}

51

Corner plate

-

-

x

0.75 {0.030}

52

Wheel house (inner)

-

-

x

0.70 {0.028}

53

Rear pillar (inner, upper)

-

-

-

0.65 {0.026}

54

Rear side panel

-

-

-

0.80 {0.031}

55

Rear pillar (inner, lower)

-

-

x

0.70 {0.028}

56

Side frame outer

-

-

x

0.65 {0.026}

57

Rear door panel

-

-

x

0.65 {0.026}

58

Front door panel

-

-

x

0.70 {0.028}

59

Crossmember No.2

x

-

-

1.00 {0.039}

60

Seat bracket

-

x

x

1.80 {0.071}

61

Crossmember No.2.5

x

-

-

1.00 {0.039}

62

Front floor pan

-

-

x

0.65 {0.026}

63

Front floor reinforcement

x

-

-

1.00 {0.039}

64

Front B frame

x

-

-

1.80 {0.071}

65

Frame reinforcement

-

x

x

0.80 {0.031}

66

Tunnel reinforcement

-

x

-

0.80 {0.031}

67

Tunnel reinforcement

-

x

-

1.60 {0.063}

68

Center floor pan

-

x

x

1.20 {0.047}

69

Rear floor pan

-

-

x

0.60 {0.024}

70

Trunk floor reinforcement

-

x

x

1.40 {0.055}

71

Crossmember No.4

-

x

x

1.20 {0.047}

72

Rear side frame

x

-

-

1.80 {0.071}

73

Rear frame reinforcement

x

-

-

1.60 {0.063}

74

Rear bumper bracket

-

-

-

1.20 {0.047}

75

Rear end panel

-

-

x

1.00 {0.039}

No.	Part Name	Ultra high-tension Steel	High-tension Steel	Rust Proof Steel	Thickness (mm) {in}
1	Bonnet	-	x	x	0.60 {0.024}
2	Front bumper bracket	-	x	x	2.90 {0.114}
3	Front side frame (outer)	x	-	x	1.40 {0.055}
4	Apron reinforcement No.3	-	-	x	1.40 {0.055}
5	Front suspension housing (upper)	-	x	x	2.30 {0.091}
6	Front suspension housing (lower)	-	-	x	1.00 {0.039}
7	Apron reinforcement (upper)	-	-	x	0.90 {0.039}
8	Apron reinforcement (lower)	-	-	-	1.00 {0.039}
9	Cowl side reinforcement (Front)	-	-	x	0.75 {0.030}
10	Cowl side reinforcement (Rear)	-	-	-	1.00 {0.039}
11	Cowl side panel	x	-	x	1.60 {0.063}
12	Hinge gusset	x	-	-	2.30 {0.091}
13	Front side frame inner	Front	x	-	x	1.40 {0.055}
Rear	x	-	x	1.80 {0.071}
14	Front frame Rear	x	-	x	2.00 {0.079}
15	Front frame Rear reinforcement	x	-	x	2.30 {0.091}
16	Front frame gusset	-	x	x	2.00 {0.079}
17	Front frame (inner) reinforcement	x	-	x	2.00 {0.079}
18	Torque box	-	x	x	1.60 {0.063}
19	Front fender panel	-	-	-	0.65 {0.026}
20	Front fender bracket	-	-	-	1.40 {0.055}
21	Dash lower member	-	-	x	1.80 {0.071}
22	Dash lower panel	-	-	x	0.75 {0.030}
23	Dash side reinforcement (upper)	x	-	-	2.00 {0.079}
24	Dash side reinforcement (lower)	x	-	-	1.60 {0.063}
25	Dash lower reinforcement	x	-	-	2.00 {0.079}
26	Cowl panel	-	-	x	0.70 {0.028}
27	Dash upper panel	-	-	x	0.80 {0.031}
28	Cowl upper plate	-	-	x	1.00 {0.039}
29	Wiper bracket	-	-	x	1.60 {0.063}
30	Hinge pillar (inner)	x	-	-	1.20 {0.047}
31	Hinge pillar reinforcement	x	-	-	1.40 {0.055}
32	Side sill (inner)	Front	x	-	x	1.60 {0.063}
Rear	x	-	-	1.20 {0.047}
33	Side sill (inner, Rear)	x	-	x	1.20 {0.047}
34	Side sill reinforcement	x	-	x	1.40 {0.055}
35	Side sill reinforcement (Rear)	x	-	x	1.00 {0.039}
36	Front pillar (inner)	x	-	-	1.00 {0.039}
37	Front pillar reinforcement	x	-	-	1.00 {0.039}
38	Front pillar reinforcement (upper)	×	-	-	1.20 {0.047}
39	Center pillar (inner)	-	x	-	1.00 {0.039}
40	Center pillar reinforcement	Upper	x	-	-	1.80 {0.071}
Lower	x	-	-	1.20 {0.047}
41	B-pillar reinforcement (inner)	-	x	-	1.20 {0.047}
42	Hinge reinforcement	x	-	-	1.40 {0.055}
43	Roof rail (inner)	x	-	-	1.00 {0.039}
44	Roof rail reinforcement	x	-	-	1.20 {0.047}
45	Front header	-	-	-	0.55 {0.022}
46	Roof reinforcement	x	-	-	1.00 {0.039}
47	Roof reinforcement	-	-	-	0.55 {0.022}
48	Rear header	-	-	-	0.80 {0.031}
49	Roof panel	-	-	-	0.65 {0.026}
50	Rear pillar (outer)	-	-	x	0.65 {0.026}
51	Corner plate	-	-	x	0.75 {0.030}
52	Wheel house (inner)	-	-	x	0.70 {0.028}
53	Rear pillar (inner, upper)	-	-	-	0.65 {0.026}
54	Rear side panel	-	-	-	0.80 {0.031}
55	Rear pillar (inner, lower)	-	-	x	0.70 {0.028}
56	Side frame outer	-	-	x	0.65 {0.026}
57	Rear door panel	-	-	x	0.65 {0.026}
58	Front door panel	-	-	x	0.70 {0.028}
59	Crossmember No.2	x	-	-	1.00 {0.039}
60	Seat bracket	-	x	x	1.80 {0.071}
61	Crossmember No.2.5	x	-	-	1.00 {0.039}
62	Front floor pan	-	-	x	0.65 {0.026}
63	Front floor reinforcement	x	-	-	1.00 {0.039}
64	Front B frame	x	-	-	1.80 {0.071}
65	Frame reinforcement	-	x	x	0.80 {0.031}
66	Tunnel reinforcement	-	x	-	0.80 {0.031}
67	Tunnel reinforcement	-	x	-	1.60 {0.063}
68	Center floor pan	-	x	x	1.20 {0.047}
69	Rear floor pan	-	-	x	0.60 {0.024}
70	Trunk floor reinforcement	-	x	x	1.40 {0.055}
71	Crossmember No.4	-	x	x	1.20 {0.047}
72	Rear side frame	x	-	-	1.80 {0.071}
73	Rear frame reinforcement	x	-	-	1.60 {0.063}
74	Rear bumper bracket	-	-	-	1.20 {0.047}
75	Rear end panel	-	-	x	1.00 {0.039}

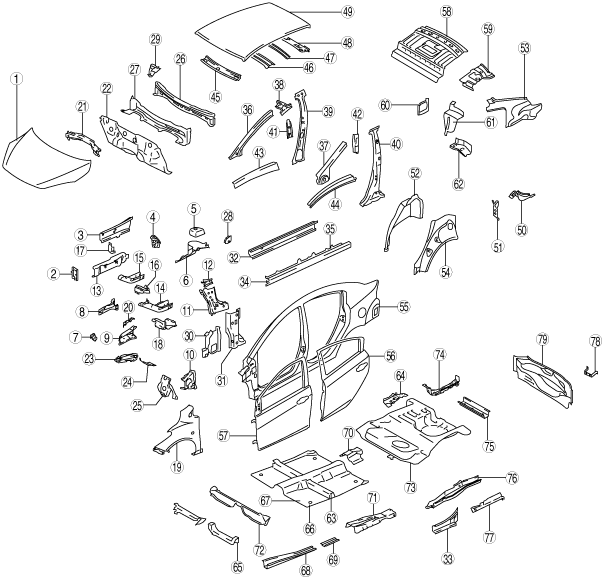

4SD

Australian, General (L.H.D. R.H.D.) specs.

am2ccb00000034

No.

Part Name

Ultra high-tension Steel

High-tension Steel

Rust Proof Steel

Thickness (mm) {in}

1

Bonnet

-

x

x

0.60 {0.024}

2

Front bumper bracket

-

x

-

2.90 {0.114}

3

Front side frame (outer)

x

-

x

1.40 {0.055}

4

Apron reinforcement No.3

-

-

x

1.40 {0.055}

5

Front suspension housing (upper)

-

x

x

2.30 {0.091}

6

Front suspension housing (lower)

-

-

x

1.00 {0.039}

7

Apron reninforcement (upper)

-

-

x

0.90 {0.039}

8

Apron reinforcement (lower)

-

-

-

1.00 {0.039}

9

Cowl side reinforcement (Front)

-

-

x

0.75 {0.030}

10

Cowl side reinforcement (Rear)

-

-

-

1.00 {0.039}

11

Cowl side panel

x

-

x

1.60 {0.063}

12

Hinge gusset

x

-

-

2.30 {0.091}

13

Front side frame inner

Front

x

-

x

1.40 {0.055}

Rear

x

-

x

1.80 {0.071}

14

Front frame Rear

x

-

x

2.00 {0.079}

15

Front frame Rear reinforcement

x

-

x

2.30 {0.091}

16

Front frame gusset

-

x

x

2.00 {0.079}

17

Front frame (inner) reinforcement

x

-

x

2.00 {0.079}

18

Torque box

-

x

x

1.60 {0.063}

19

Front fender panel

-

-

x

0.65 {0.026}

20

Front fender bracket

-

-

-

1.40 {0.055}

21

Dash lower member

-

x

x

1.80 {0.071}

22

Dash lower panel

-

-

x

0.75 {0.030}

23

Dash side reinforcement (upper)

x

-

-

2.00 {0.079}

24

Dash side reinforcement (lower)

x

-

-

1.60 {0.063}

25

Dash lower reinforcement

x

-

-

2.00 {0.079}

26

Cowl panel

-

-

x

0.70 {0.028}

27

Dash upper panel

-

-

x

0.80 {0.031}

28

Cowl upper plate

-

-

x

1.00 {0.039}

29

Wiper bracket

-

-

x

1.60 {0.063}

30

Hinge pillar (inner)

x

-

-

1.20 {0.047}

31

Hinge pillar reinforcement

x

-

-

1.40 {0.055}

32

Side sill (inner)

Front

x

-

x

1.60 {0.063}

Rear

x

-

-

1.20 {0.047}

33

Side sill (inner, Rear)

x

-

x

1.20 {0.047}

34

Side sill reinforcement

x

-

x

1.40 {0.055}

35

Side sill reinforcement (Rear)

x

-

x

1.00 {0.039}

36

Front pillar (inner)

x

-

-

1.00 {0.039}

37

Front pillar reinforcement

x

-

-

1.00 {0.039}

38

Front pillar reinforcement (upper)

x

-

-

1.20 {0.047}

39

Center pillar (inner)

-

x

-

1.00 {0.039}

40

Center pillar reinforcement

Upper

x

-

-

1.80 {0.071}

Lower

x

-

-

1.20 {0.047}

41

B-pillar reinforcement (inner)

-

x

-

1.20 {0.047}

42

Hinge reinforcement

x

-

-

1.40 {0.055}

43

Roof rail (inner)

x

-

-

1.00 {0.039}

44

Roof rail reinforcement

x

-

-

1.20 {0.047}

45

Front header

-

-

-

0.55 {0.022}

46

Roof reinforcement

x

-

-

1.00 {0.039}

47

Roof reinforcement

-

-

-

0.55 {0.022}

48

Rear header

-

-

-

0.70 {0.028}

49

Roof panel

-

-

-

0.65 {0.026}

50

Rear fender rain rail

-

-

x

0.65 {0.026}

51

Corner plate

-

-

x

0.65 {0.026}

52

Wheel house (inner)

-

-

x

0.70 {0.028}

53

Rear pillar (inner, upper)

-

-

-

0.65 {0.026}

54

Rear pillar (inner, lower)

-

-

x

0.70 {0.028}

55

Side frame (outer)

-

-

x

0.65 {0.026}

56

Rear door panel

-

-

x

0.65 {0.026}

57

Front door panel

-

-

x

0.70 {0.028}

58

Package tray

-

-

-

0.60 {0.024}

59

Package junction

-

-

-

0.70 {0.028}

60

Package reinforcement

-

-

-

1.40 {0.055}

61

Side brace

-

-

-

0.90 {0.035}

62

Package gusset

-

-

-

1.00 {0.039}

63

Crossmember No.2

x

-

-

1.00 {0.039}

64

Seat bracket

-

x

x

1.80 {0.071}

65

Crossmember No.2.5

x

-

-

1.00 {0.039}

66

Front floor pan

-

-

x

0.65 {0.026}

67

Front floor reinforcement

x

-

-

1.00 {0.039}

68

Front B frame

x

-

-

1.80 {0.071}

69

Frame reinforcement

-

x

x

0.80 {0.031}

70

Tunnel reinforcement

-

x

-

0.80 {0.031}

71

Tunnel reinforcement

-

x

-

1.60 {0.063}

72

Center floor pan

-

x

x

1.20 {0.047}

73

Rear floor pan

-

-

x

0.65 {0.026}

74

Trunk floor reinforcement

-

x

x

1.40 {0.055}

75

Crossmember No.4

-

x

x

1.20 {0.047}

76

Rear side frame

x

-

-

1.80 {0.071}

77

Rear frame reinforcement

x

-

-

1.60 {0.063}

78

Rear bumper bracket

-

-

x

0.70 {0.028}

79

Rear end panel

-

-

x

0.70 {0.028}
