SECONDARY GEAR AND OUTPUT GEAR DISASSEMBLY

id051700661000

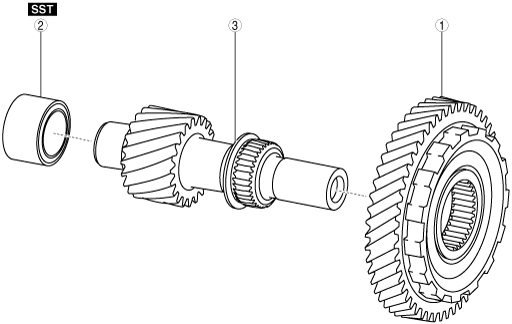

Structural view

bcw6ja00000040

1
Secondary gear
2
Bearing race (converter housing side)
3
Output gear


Disassembly Procedure

1.  Perform the following inspection:

Caution
•  If there is no malfunction based on the results of the inspection, it is not necessary to disassemble the secondary gear and output gear.
•  Visual inspection of parts
•  Secondary gear and output gear inspection
•  If there is a malfunction, disassemble the secondary gear and output gear and replace the malfunctioning part with a new one.

2.  Using the press, remove the secondary gear.

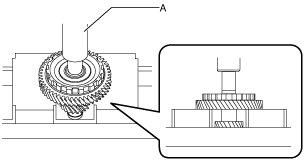

bcw6ja00000041

A  :Press
bcw6ja00000042
A  :Secondary gear

3.  Using the SSTs and press, remove the bearing race.

bcw6ja00000676

A  :Press
bcw6ja00000044

4.  Clean the disassembled parts. (See AUTOMATIC TRANSAXLE CLEANING.)
