HIGH CLUTCH INSPECTION

id051700662600

Drive Plate Inspection

1. Measure the thickness of the drive plate in four locations (each separated by 90°) and calculate the average value.

azzjjw00001313

Caution

• When measuring the thickness of the drive plate, measure the thickness including the facing.

• Measure the thickness of all the drive plates.

Note

• Drive plate size: Outer diameter approx. 111.7 mm {4.398 in}

• Recommended measuring instrument: Micrometer

• If it is the minimum specification or less, replace the drive plate with a new one.

Minimum

1.475 mm {0.05807 in}

Springs and Retainer Component Inspection

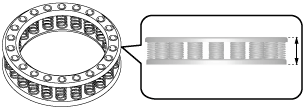

1. Measure the free length of the springs and retainer component in four locations (each separated by 90°) and calculate the average value.

bcw6ja00000596

Note

• Springs and retainer component size: Outer diameter approx. 78.5 mm {3.09 in}

• Recommended measuring instrument: Vernier caliper

• If it is the minimum specification or less, replace the springs and retainer component with a new one.

Minimum

2.40 mm {0.0945 in}
