LOW AND REVERSE BRAKE INSPECTION

id051700662700

Drive Plate Inspection

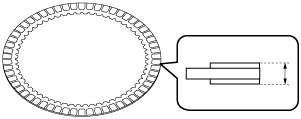

1. Measure the thickness of the drive plate in four locations (each separated by 90°) and calculate the average value.

azzjjw00001316

Caution

• When measuring the thickness of the drive plate, measure the thickness including the facing.

• Measure the thickness of all the drive plates.

Note

• Drive plate size: Outer diameter approx. 162 mm {6.38 in}

• Recommended measuring instrument: Micrometer

• If it is the minimum specification or less, replace the drive plate with a new one.

Minimum

1.580 mm {0.06220 in}
