2-6 BRAKE INSPECTION


id051700662800


Drive Plate Inspection

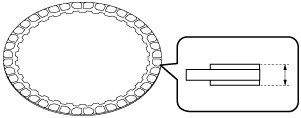

1.  Measure the thickness of the drive plate in four locations (each separated by 90°) and calculate the average value.

azzjjw00001318

Caution
•  When measuring the thickness of the drive plate, measure the thickness including the facing.
•  Measure the thickness of all the drive plates.
Note
•  Drive plate size: Outer diameter approx. 160.4 mm {6.315 in}
•  Recommended measuring instrument: Micrometer
•  If it is the minimum specification or less, replace the drive plate with a new one.
Minimum
1.475 mm {0.05807 in}
