OIL PUMP INSPECTION

id051700663300

Side Clearance Inspection

1. Assemble the outer rotor.

Note

• Assemble so that the outer rotor marking is facing the oil pump housing.

azzjjw00001327

A :Mark

B :Assembly direction (oil pump housing side)

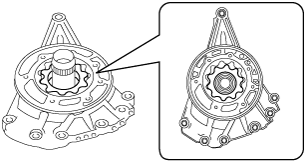

azzjjw00001328

2. Assemble the inner rotor.

Note

• Assemble so that the inner rotor marking pointed toward the oil pump housing side.

azzjjw00001529

A :Mark

B :Assembly direction (oil pump housing side)

azzjjw00001330

3. Set the assembled parts on the workbench as shown in the figure.

Caution

• To reduce error during the side clearance measurement, use the rubber plates to adjust the alignment surface of the oil pump housing with the oil pump cover so that it is level.

azzjjw00001331

A :Rubber plate

4. Measure the side clearance shown in the figure in the four locations (each separated by 90°) and calculate the average value.

Caution

• Measure the inner rotor and outer rotor side clearances.

Note

• Recommended measuring instrument: Thickness gauge, straight edge ruler

azzjjw00001332

A :Inner rotor

B :Outer rotor

Maximum

• Inner rotor: 0.045 mm {0.0018 in}

• Outer rotor: 0.050 mm {0.0020 in}

• If it is the maximum specification or more, replace the oil pump with a new one.

Note

• Measurement method

(1) Set the straight edge ruler along the alignment surface of the oil pump housing with the oil pump cover as shown in the figure.

azzjjw00001333

A :Straight edge ruler

(2) Measure the gaps between the straight edge ruler and the inner rotor, and the straight edge ruler and the outer rotor using a thickness gauge.

5. Take the parts in which the side clearance has been measured off the rubber plates.

azzjjw00001334

6. Remove the inner rotor.

azzjjw00001335

7. Remove the outer rotor.

azzjjw00001336

Bushing Inner Diameter Inspection (in Oil Pump Cover)

1. Measure the inner diameter of the bushing shown in the figure.

Note

• When measuring, measure near the center of the bushing avoiding the dimple, and then calculate the average value of the X and Y directions as shown in the figure.

• Recommended measuring instrument: Cylinder gauge or caliper gauge

azzjjw00001337

Maximum

44.006 mm {1.7325 in}

• If it is the maximum specification or more, replace the oil pump cover with a new one.

Radial Needle Bearing Inspection (in Oil Pump Housing)

1. Rotate the radial needle bearing shown in the figure by hand and verify that there is no malfunction in the radial needle bearing (rotation sticking).

azzjjw00001338

• If there is a malfunction, replace the oil pump with a new one.
