SECONDARY GEAR AND OUTPUT GEAR ASSEMBLY

id051700664000

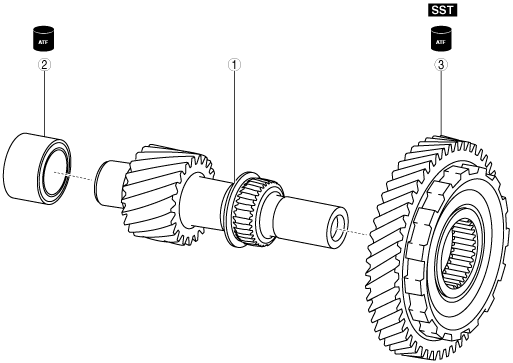

Structural view

bcw7za00000019

1	Output gear
2	Bearing race (converter housing side) (inner diameter approx. 27 mm {1.1 in})
3	Secondary gear

Assembly Procedure

1.  Assemble a new bearing race (converter housing side) using the following procedure:

Note

•  Bearing race size: Inner diameter approx. 27 mm {1.1 in}

(1)  Apply ATF (ATF FZ) to the engagement area of the bearing race and output gear.

(2)  Assemble the bearing inner race using a press.

bcw6ja00000280

bcw6ja00001049

A  :Press

B  :Bearing inner race

2.  Assemble the secondary gear using the following procedure:

(1)  Apply ATF (ATF FZ) to the engagement area (spline area) of the secondary gear and output gear.

(2)  Using the SST and press, assemble the secondary gear.

bcw6ja00000048

bcw6ja00000049

A  :Press
