MEASUREMENT/ADJUSTMENT VALUE INPUT SHEET

id051700665300

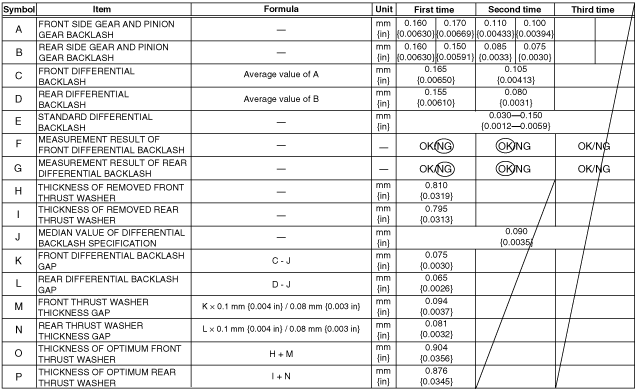

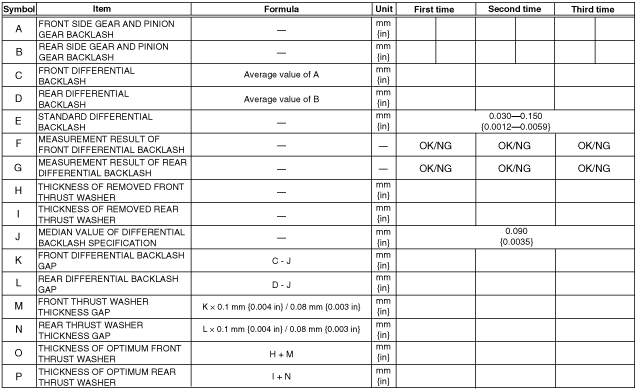

Differential Backlash Measurement/Adjustment

bcw7za00000047

Description example

bcw7za00000048

High Clutch Clearance Measurement/Adjustment

bcw7za00000051

Description example

bcw7za00000040

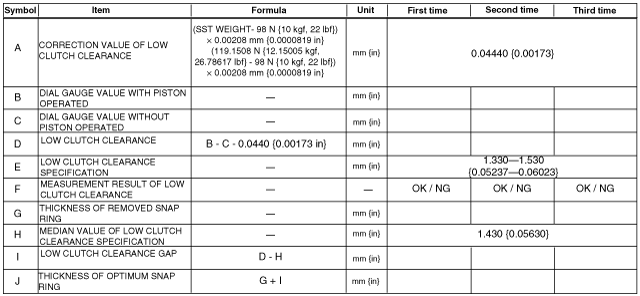

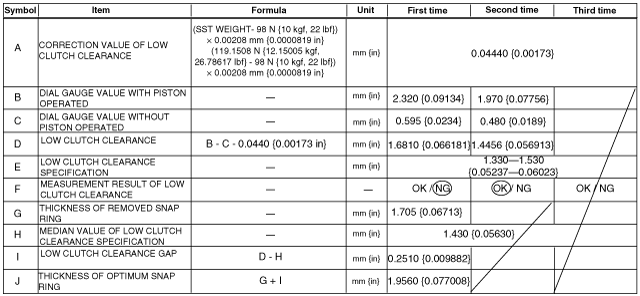

Low Clutch Clearance Measurement/Adjustment

bcw7za00000033

Description example

bcw7za00000041

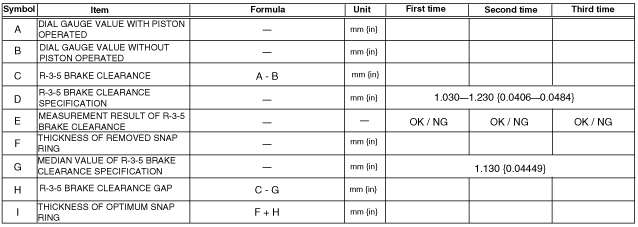

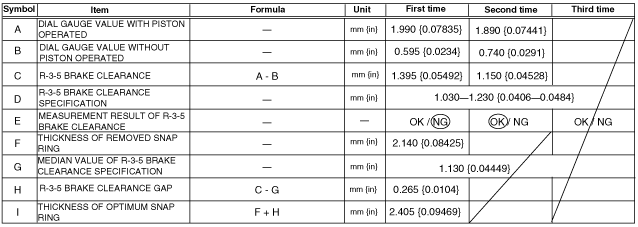

R-3-5 Brake Clearance Measurement/Adjustment

bcw7za00000035

Description example

bcw7za00000042

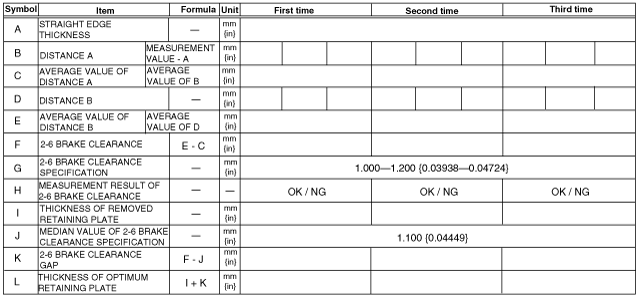

2-6 Brake Clearance Measurement/Adjustment

bcw7za00000036

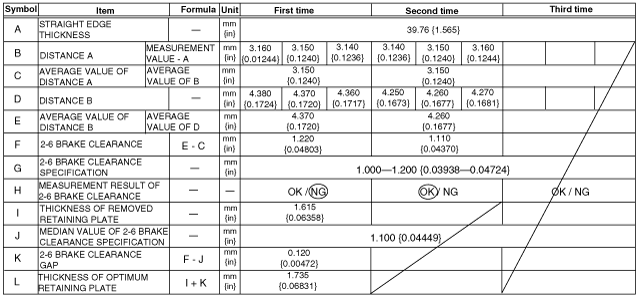

Description example

bcw7za00000043

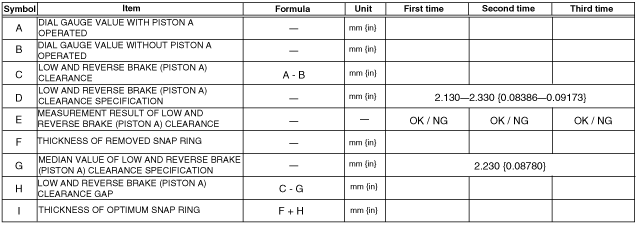

Low and Reverse Brake (Piston A) Clearance Measurement/Adjustment

bcw7za00000037

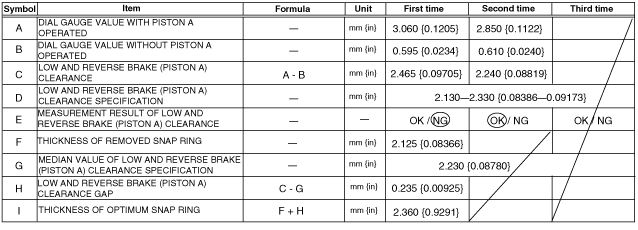

Description example

bcw7za00000044

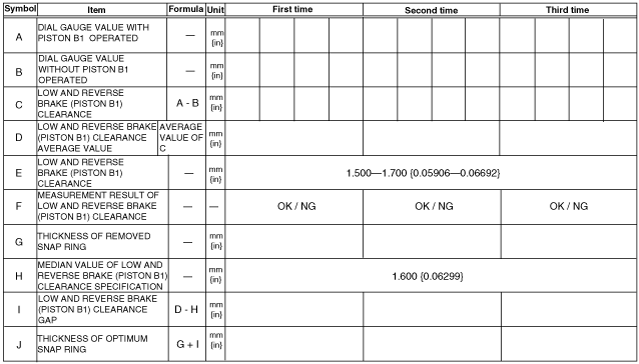

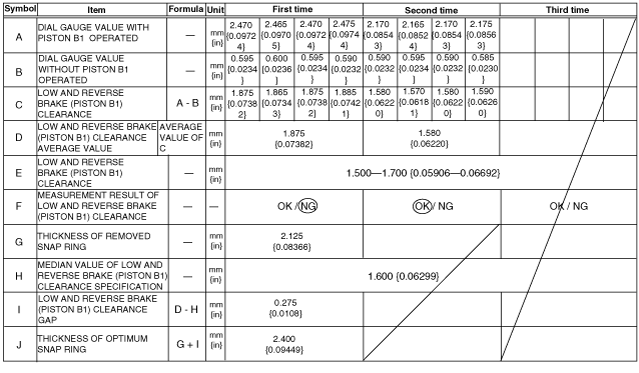

Low and Reverse Brake (Piston B1) Clearance Measurement/Adjustment

bcw7za00000038

Description example

bcw7za00000045

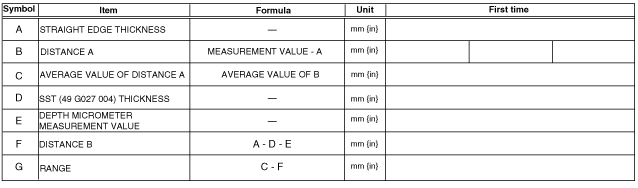

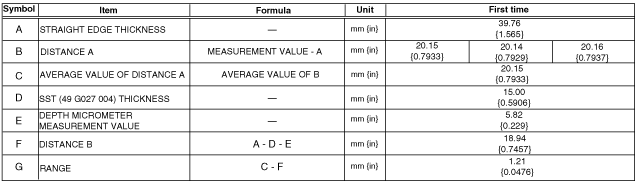

Secondary Gear and Output Gear End Play Measurement/Adjustment

bcw7za00000039

Description example

bcw7za00000046

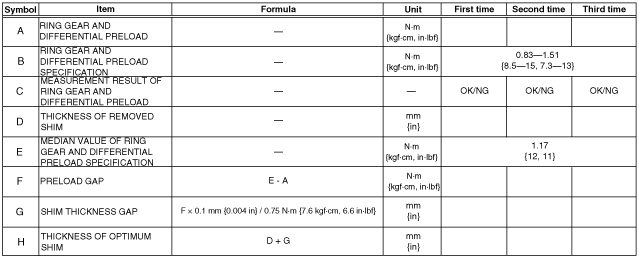

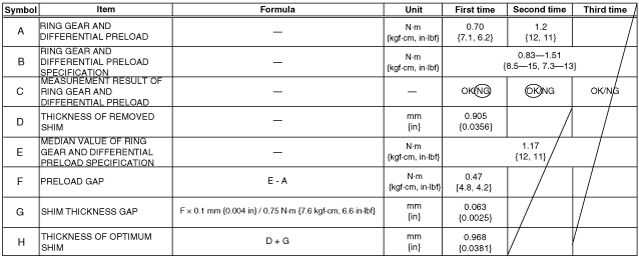

Ring Gear and Differential Preload Measurement/Adjustment

bcw7za00000049

Description example

bcw7za00000050

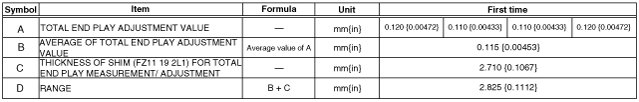

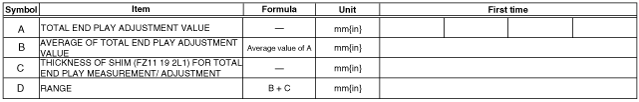

Total End Play Measurement/Adjustment

bcw7za00000027

Description example

bcw7za00000028
