TRANSAXLE CASE AND CLUTCH HOUSING DISASSEMBLY

id051500168200


Transaxle Case Component Disassembly

1.  Install the bolt and nut to the transaxle case component at the location shown in the figure, and pinch the bolt using a vice to secure the transaxle case component.

bf62zm00000013

Bolt
PART NUMBER 99450 0855 or M8 x 1.25 bolt, length 55 mm {2.2 in}
Nut
M8×1.25

2.  Disassemble the transaxle case component in the order shown in the figure.

bf62zm00000014

1
Funnel (primary shaft)
(See Funnel (primary shaft) removal note.)
2
Oil path
3
Select lever
4
Select arm
5
Oil seal (select lever)
(See Oil seal (select lever) removal note.)
6
Shift lever
7
Inner shift lever
8
Switch pin (with i-stop)
9
Detent ball pin
10
Spring
11
Oil seal (shift lever)
(See Oil seal (shift lever) removal note.)
12
Clip
13
Transaxle case


Funnel (primary shaft) removal note

1.  Remove the funnel from the transaxle case using a screwdriver as shown in the figure.

bf62zm00000015

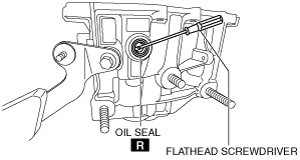

Oil seal (select lever) removal note

1.  Remove the oil seal from the transaxle case using a flathead screwdriver.

bf62zm00000016


Oil seal (shift lever) removal note

1.  Remove the oil seal from the transaxle case using a flathead screwdriver.

bf62zm00000017


Clutch Housing Component Disassembly

1.   Remove the clutch housing components in the order shown in the figure.

bf62zm00000018

1
Breather
2
Stopper plate
3
Roller bearing
(See Roller bearing removal note.)
4
Funnel
5
Oil seal
(See Oil seal removal note.)
6
Dowel pin
7
Clutch housing

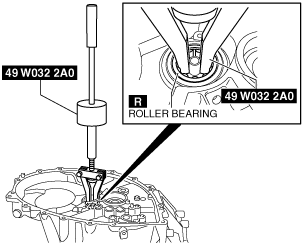

Roller bearing removal note

1.  Remove the roller bearing from the clutch housing using the SST.

bf62zm00000019


Oil seal removal note

1.  Remove the oil seal from the clutch housing using a flathead screwdriver.

bf62zm00000020
