TRANSAXLE CASE AND CLUTCH HOUSING ASSEMBLY
id051500169900
Transaxle Case Component Assembly

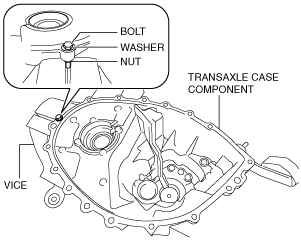

1. Install the bolt and nut to the transaxle case component, pinch the bolt using a vice, and secure the transaxle component as shown in the figure.
bf62zm00000113
|

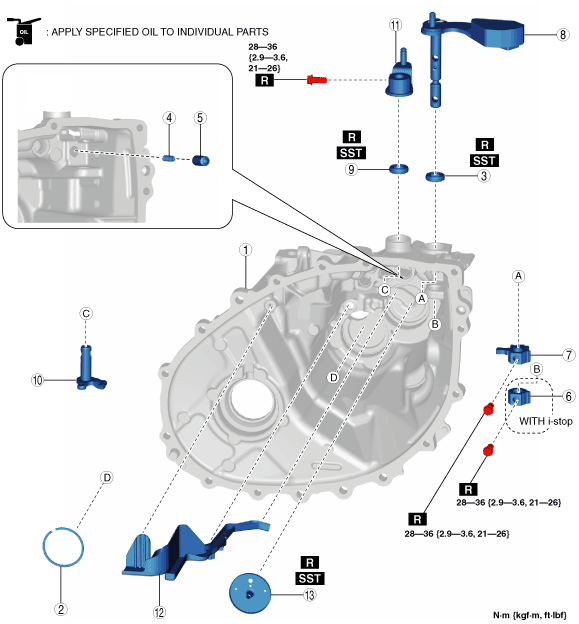

2. Assemble the transaxle case component in the order shown in the figure.
bf62zm00000114
|
|
1
|
Transaxle case
|
|
2
|
Clip
|
|
3
|
Oil seal (shift lever)
|
|
4
|
Spring
|
|
5
|
Detent ball pin
|
|
6
|
Switch pin (with i-stop)
|
|
7
|
Inner shift lever
|
|
8
|
Shift lever
|
|
9
|
Oil seal (select lever)
|
|
10
|
Select arm
|
|
11
|
Select lever
|
|
12
|
Oil path
|
|
13
|
Funnel
|
Oil seal (shift lever) assembly note
1. Assemble the new oil seal to the position shown in the figure using the SST.
bf62zm00000115
|
bf62zm00000116
|
Oil seal (select lever) assembly note
1. Assemble the new oil seal to the position shown in the figure using the SST.
bf62zm00000117
|
bf62zm00000118
|
Funnel (primary shaft) assembly note
1. Set a new funnel while aligning hole A in the upper part of the funnel with air-bleeding hole B at the shift rod (5GR/6GR) hole of the transaxle case as shown in the figure.
bf62zm00000119
|
2. Assemble the funnel to the transaxle case using the SST.
bf62zm00000120
|
Clutch Housing Component Assembly
1. Assemble the clutch housing component in the order shown in the figure.
bf62zm00000121
|
|
1
|
Clutch housing
|
|
2
|
Dowel pin
|
|
3
|
Oil seal
(See Oil seal assembly note.)
|
|
4
|
Funnel
|
|
5
|
Roller bearing
(See Roller bearing assembly note.)
|
|
6
|
Stopper plate
|
|
7
|
Breather
|
Oil seal assembly note

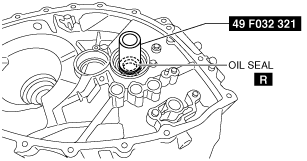

1. Assemble a new oil seal using the SST.
bf62zm00000122
|
Roller bearing assembly note
1. Assemble a new roller bearing using the SST.
bf62zm00000123
|
