TRANSAXLE CASE AND CLUTCH HOUSING INSPECTION
id051500285100
Transaxle Case Inspection
1. Inspect the transaxle case for damage, wear or loss.

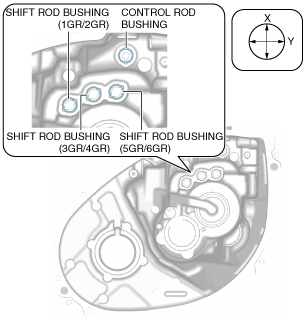

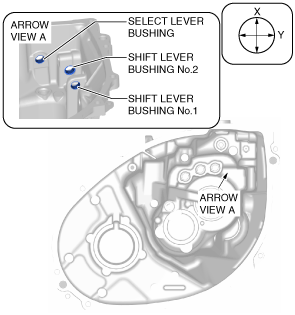

2. Measure the inner diameter of the bushing assembled to the transaxle case. Measurement positions total 14 and are in the X and Y directions at 7 points, A, B, C, D, E, F, and G, as shown in the figure.
bf62zm00000170
|
bf62zm00000171
|
Bush inner diameter
|
Measurement location |
Specification (mm {in}) |
Maximum (mm {in}) |
|---|---|---|
|
A: Shift rod bushing (1GR/2GR)
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
B: Shift rod bushing (3GR/4GR)
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
C: Shift rod bushing (5GR/6GR)
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
D: Control rod bushing
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
E: Select lever bushing
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
F: Shift lever bushing No.1
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
G: Shift lever bushing No.2
|
14.031 {0.55240}
|
14.071 {0.55398}
|
Clutch Housing Inspection
1. Inspect the clutch housing for damage, wear, or loss.

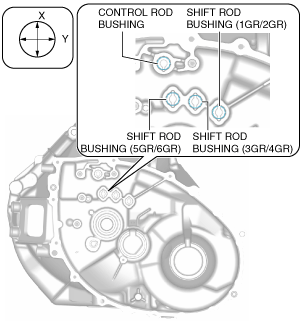

2. Measure the inner diameter of the bushing assembled to the clutch housing. Measurement positions total eight and are in the X and Y directions, at four points (A, B, C, and D) as shown in the figure.
bf62zm00000172
|
Bushing inner diameter
|
Measurement location |
Specification (mm {in}) |
Maximum (mm {in}) |
|---|---|---|
|
A: Shift rod bushing (1GR/2GR)
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
B: Shift rod bushing (3GR/4GR)
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
C: Shift rod bushing (5GR/6GR)
|
14.048 {0.55307}
|
14.088 {0.55465}
|
|
D: Control rod bushing
|
14.048 {0.55307}
|
14.088 {0.55465}
|
