AIM OF DEVELOPMENT

id000000100100

Product Concept

• A subcompact to shatter all notions of class

Vehicle Outline

Exterior design

• A physique that conveys a sense of explosive forward momentum through its expression of condensing and releasing energy.

• Presents a handsome and lively expression with contours that are full of vitality.

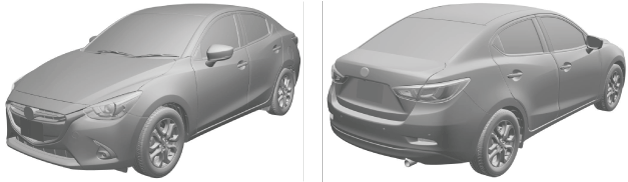

4SD

am2zzn00004678

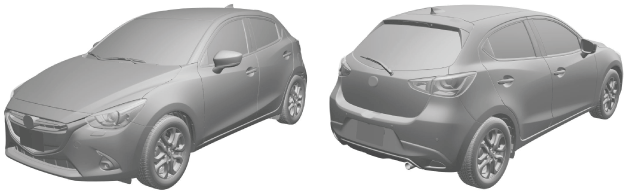

5HB

am2zzn00004462

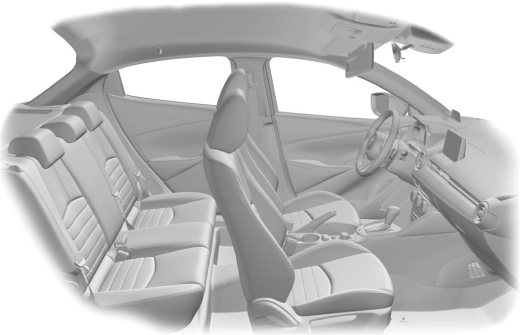

Interior design

• Finely crafted interior quality that greatly surpasses notions of the class.

• The interior establishes a balanced contrast between a cockpit zone for enjoying driving and a passenger seat zone with a roomy, open-feeling space.

am2zzn00004463

Engine

Engine mechanical [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

• For SKYACTIV-G 1.3 and SKYACTIV-G 1.5, the following are performed to lower fuel consumption.

― Mechanical resistance loss improvement from:

• Narrowed down crankshaft journal

• Optimized piston skirt shape

• Lowered piston ring tension

• Reduction of valve spring load

• Stabilization of timing chain behavior

• Optimized engine coolant passage

• Optimized water pump impeller shape

• Lowered drive belt tension

• Optimized oil passage

• Optimized oil pump shape

• Oil pump discharging pressure control has been adopted. (SKYACTIV-G 1.5 (with 4-2-1 exhaust system))

― Pumping loss improvement implemented to achieve low fuel consumption

• Variable valve timing mechanism adopted on both sides of intake and exhaust. (SKYACTIV-G 1.5 (with 4-2-1 exhaust system))

• Variable valve timing structure on intake side adopted (SKYACTIV-G 1.5 (with 4-1 exhaust system))

― Cooling loss reduction implemented to achieve low fuel consumption

• Piston cavity has been adopted.

― Combustion efficiency improved to achieve low fuel consumption

• Multiple hole-type fuel injectors adopted

• Cooling loss improvement (with coolant control valve)

― Coolant control valve adopted

― Optimized engine coolant passage

Engine mechanical [SKYACTIV-D 1.5]

• Low compression ratio implemented to achieve low fuel consumption

― Combustion efficiency by low compression ratio (14.8)

• Weight reductions implemented to achieve low fuel consumption

― Aluminum alloy cylinder block adopted

― Hard-plastic intake manifold adopted

― Exhaust manifold integrated cylinder head adopted

• Mechanical resistance loss improvements implemented to achieve low fuel consumption

― Optimized oil passage

― Optimized oil pump shape

― Optimized engine coolant passage

― Optimized water pump impeller shape

• Weight reductions and mechanical resistance improvements implemented to achieve low fuel consumption

― Piston shape optimized

― Narrowed down crankshaft journal

• Heat loss reduced to achieve low fuel consumption

― Water jacket spacer adopted

• Cooling loss reduced to achieve low fuel consumption

― Coolant control valve adopted

Engine control [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

• L-jetronic and D-jetronic type detectors have been combined for intake air amount detection, improving the accuracy of the intake air amount measurement.

• Electric variable valve timing control has been adopted on the intake side for improved fuel efficiency and pumping loss reduction by variably controlling the intake valve timing without any influence from the engine conditions.

• The engine coolant control valve adjusts the engine coolant control valve opening angle and supplies engine coolant to the appropriate engine coolant passage according to the changes in the engine coolant temperature. (with coolant control valve)

• Further engine warming has been promoted by blocking each water passage while the engine is cool. (with coolant control valve)

• i-stop control has been adopted for improved fuel efficiency, reduced exhaust gas emissions, and reduced idling noise. (with i-stop control)

• With the adoption of the i-ELOOP, charging efficiency during deceleration is improved. Because loss of engine force does not occur when the battery is recharged during deceleration, fuel economy is improved. (with i-ELOOP)

Engine control [SKYACTIV-D 1.5]

• By adopting boost control and attaining efficient, high air charging pressure in all ranges, low emission performance, low fuel consumption, and high torque/high response have been achieved.

• An exhaust gas recirculation (EGR) system has been adopted for cleaner exhaust emissions and improved fuel efficiency.

• i-stop control has been adopted for improved fuel efficiency, reduced exhaust gas emissions, and reduced idling noise.

Suspension

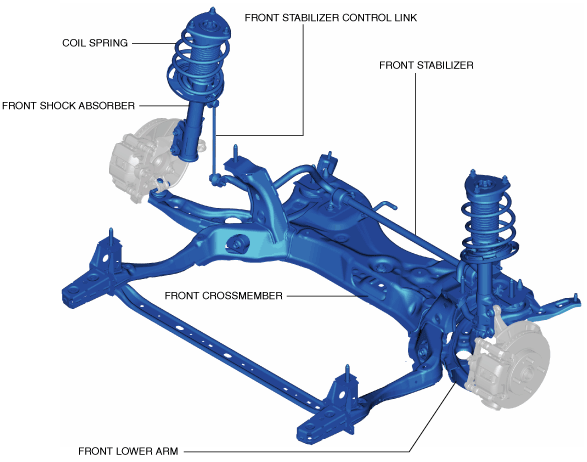

• Front suspension

― Strut-type suspension adopted

― For the front crossmember, the welded flange has been eliminated (flange-less), the cross-section expanded and the connection rigidity of the welded parts improved to achieve both rigidity and light weight.

― By adopting a 6-point rigid mount-type front crossmember, the force generated from the tires is transmitted directly, and an agile vehicle response in low-to-mid speed range has been adopted.

am2zzn00002681

• Rear suspension

― A torsion beam axle-type rear suspension has been adopted.

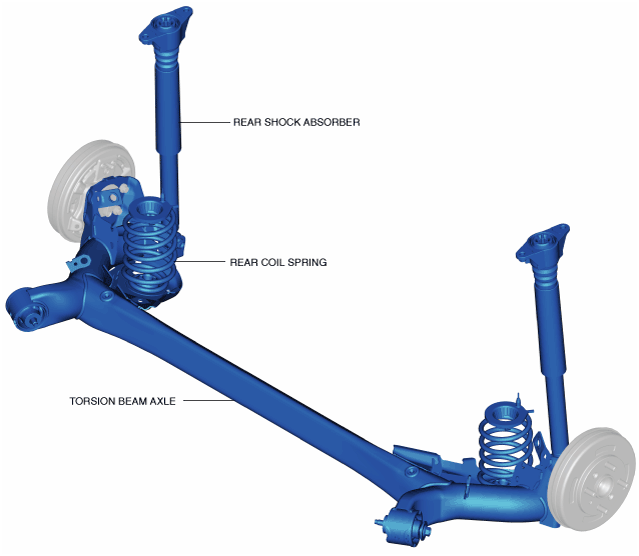

Rear brake (drum)

am2zzn00002682

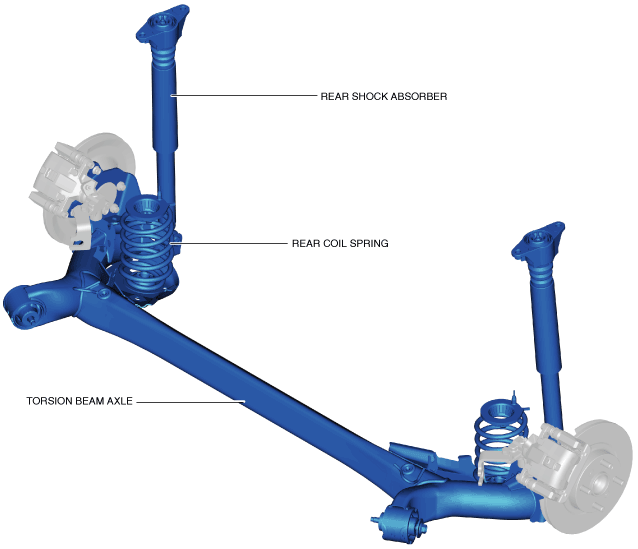

Rear brake (disc)

am2zzn00002683

Brakes

• Conventional brake system

― A vacuum pump has been adopted, improving brake force.

― For the front brake a ventilated-type disc brake has been adopted, improving braking force.

― For the rear brake (disc) a solid-type disc brake has been adopted, improving braking force.

― For the rear brake (drum) a leading trailing-type drum brake has been adopted.

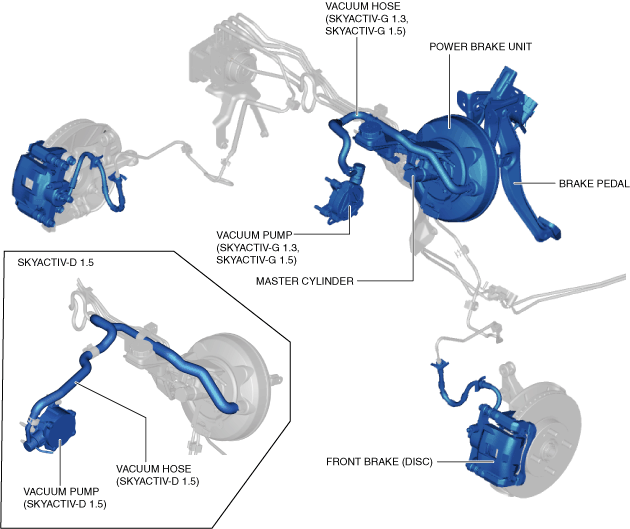

Vehicle front side (L.H.D.)

am2zzn00004804

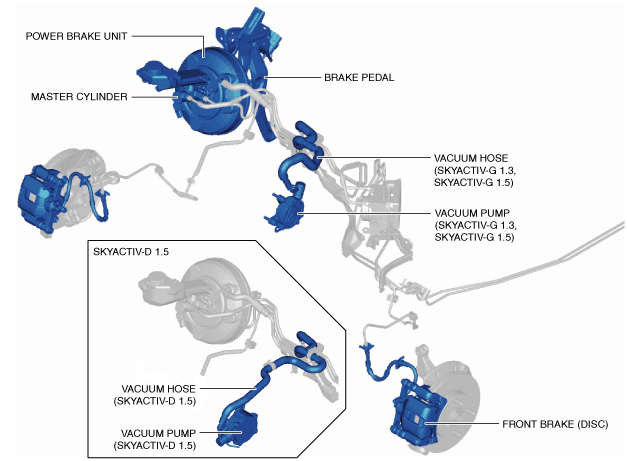

Vehicle front side (R.H.D.)

am2zzn00001631

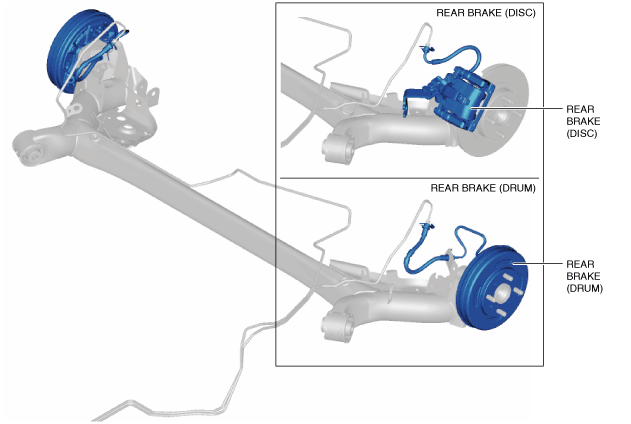

Vehicle rear side

am2zzn00001632

• Antilock brake system (ABS)

― Electronic Brakeforce Distribution (EBD) has been adopted for improved safety.

― The ABS HU/CM, integrating both the hydraulic unit (HU) and control module (CM), has been adopted, resulting in a size and weight reduction of the system.

― An enhanced malfunction diagnosis system made possible by the use of Mazda Modular Diagnostic System (M-MDS) has improved serviceability.

Vehicle front side (L.H.D.)

am2zzn00002684

Vehicle front side (R.H.D.)

am2zzn00002685

Vehicle rear side

am2zzn00002686

Warning light and indicator light

am2zzn00004684

• Dynamic stability control

― Electrical brake assist control has been adopted, improving safety.

― The DSC HU/CM, integrating both the hydraulic unit (HU) and control module (CM), has been adopted, resulting in a size and weight reduction.

― An enhanced malfunction diagnosis system, used with the Mazda Modular Diagnostic System (M-MDS) adopted, improving serviceability.

― An automatic configuration function is being used, improving serviceability.

― The lateral-G and yaw rate signals received between the sophisticated air bag sensor (SAS) control module and the DSC HU/CM via controller area network (CAN) lines instead of the conventional combined sensor has been adopted, improving serviceability.

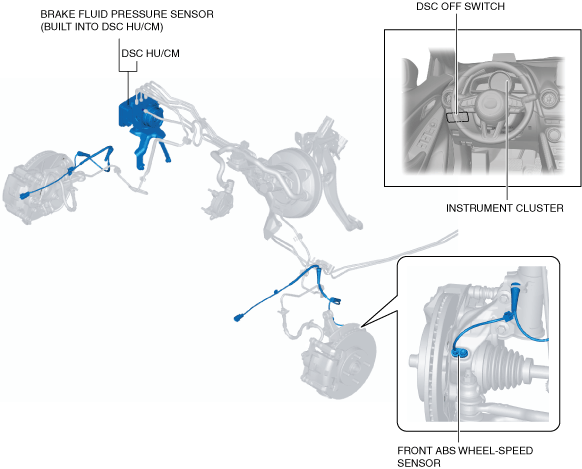

Vehicle front side (L.H.D.)

am2zzn00004708

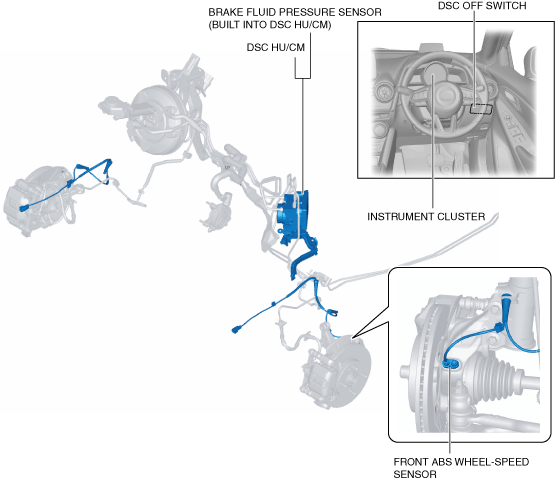

Vehicle front side (R.H.D.)

am2zzn00004709

Vehicle rear side

am2zzn00002689

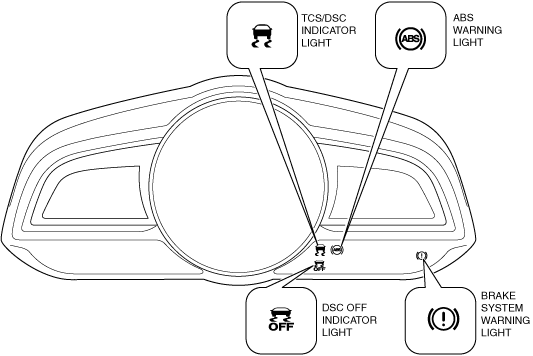

Warning light and indicator light

am2zzn00004710

Transaxle

• Manual transaxle (F65M-R)

― For SKYACTIV-G 1.5, five-speed F65M-R manual transaxle has been adopted.

am2zzn00002410

• Manual transaxle (F66M-R)

― For SKYACTIV-G 1.5 and SKYACTIV-D 1.5, six-speed F66M-R manual transaxle has been adopted.

am2zzn00002479

• Automatic transaxle (CW6A-EL)

― For SKYACTIV-G 1.3 and SKYACTIV-G 1.5, six-speed CW6A-EL automatic transaxle has been adopted.

am2zzn00002190

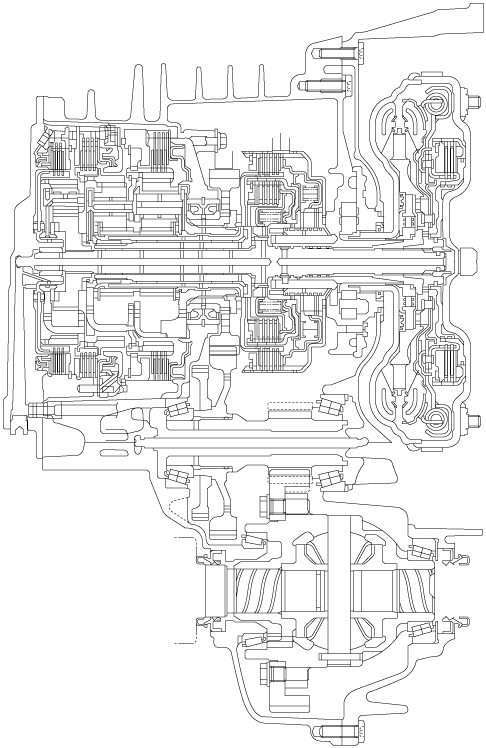

• Automatic transaxle (EW6A-EL)

― For SKYACTIV-D 1.5, six-speed EW6A-EL automatic transaxle has been adopted.

am2zzn00002360

Steering

• Power steering

― A column assist-type Electronic Power Steering (EPS) has been adopted.

― EPS provides smooth handling from low to high speeds. This is a result of the excellent steering feel provided by the electronic control and the vehicle-speed responsive control.

― EPS does not require a power steering oil pump and generates assist force only when the steering wheel is steered. As result, engine load is lowered and fuel efficiency is improved.

― An automatic configuration and steering angle neutral position auto-learning function has been adopted, improving serviceability.

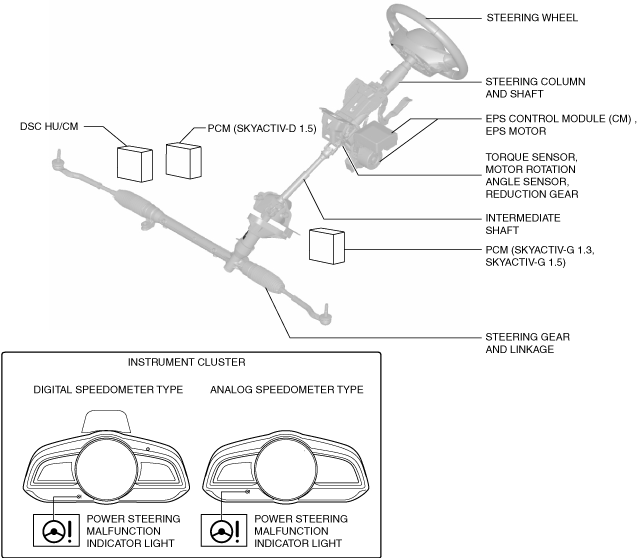

L.H.D.

am2zzn00004835

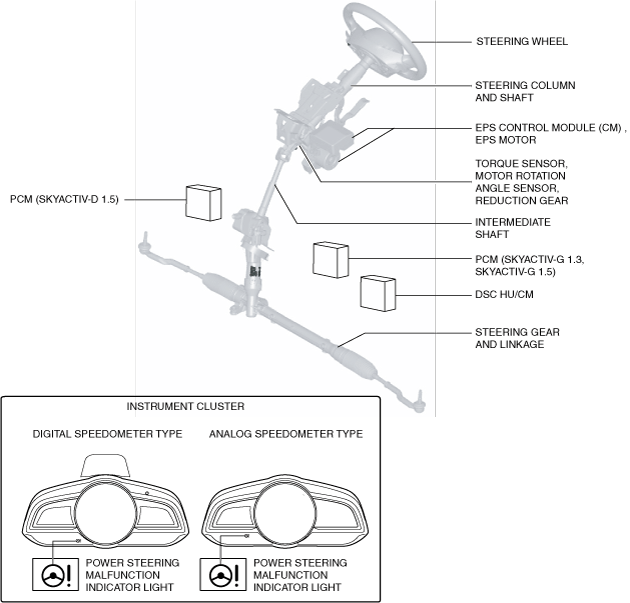

R.H.D.

am2zzn00004836

Safety

• The following have been adopted to improve safety

― Smart city brake support [Forward/Reverse] (SCBS F/R)

― Smart city brake support [Forward] (SCBS F)

― Adaptive LED headlights (ALH)

― High beam control (HBC) system

― Distance recognition support system (DRSS)

― Lane departure warning system (LDWS)

― Driver attention alert (DAA)

― Blind spot monitoring system (BSM)

― Mazda radar cruise control (MRCC)

― Cruise control system

― Electronic control brake assist

― Electronic brake force distribution (EBD)

― Intrusion-minimizing brake pedal

― Tire pressure monitoring system (TPMS)

― ABS control

― TCS control

― DSC control

― Vehicle roll prevention function

― Hill launch assist (HLA)

― Secondary collision reduction

― Steering shaft with energy adsorbing mechanism

― Curtain air bags

― Side air bags

― Pre-tensioner and load limiter mechanisms

― Seat belt warning alarm

― ISOFIX and top tether anchors

― Seat belt warning alarm

― The multi-load path

― Triple H-shaped structure

― Straight structure

― Ring structure

― Auto light system

― High-mount brake light

― Emergency signal system (ESS)

― Active driving display

― Immobilizer system

Driver's support

• The following have been adopted to improve convenience and comfort

― Natural sound smoother

― Drive selection system

― Electric power steering (EPS)

― Steering column with tilt/telescoping mechanism

― Full-auto air conditioner

― Heated outer mirrors

― Outer mirror automatic folding

― Rear window defogger

― Advanced keyless entry system

― Keyless entry system

― Theft-deterrent system

― Push button start system

― Running light system

― Headlight auto leveling system

― Auto wiper system

― Center display

― Commander switch

― Park assist system

― Parking sensor system
